Phoenix Contact Relay Module – PR1-RSC3-LDP-24DC/21

₹908.96 For 1 Pc(s)

Notify Me

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 2834326
HSN Code 85364900
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 69.22
ROHS Compliance No
Tax GST 18%
Country of Origin China

Product Details

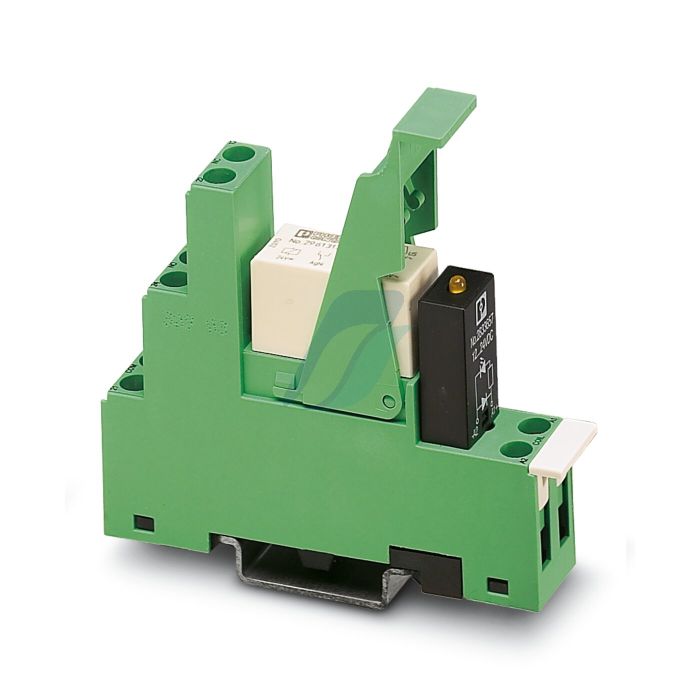

Pre-assembled relay modules with screw connection, consisting of: relay base, power contact relay, plug-in display/interference suppression module, and retaining bracket. Input voltage: 24 V DC, 1 changeover contact, 12 A

Product Specification

Mounting Type : DIN Rail
Coil Voltage : 24VDC
Contact Rating (Current) : 12 A
Switching Voltage : 250VAC, 250VDC - Max
Coil Current : 19 mA
Coil Type : Non Latching
Features : Diode, Lighted Indicator, Socket Included
Termination Style : Screw Terminal
Operate Time : 8 ms
Release Time : 10 ms
Operating Temperature : -25°C ~ 60°C
Contact Material : Silver Nickel (AgNi)
