- Type : Disconnect, Feed Through
- Disconnect Type : Switch, Knife
- Number of Positions : 4
- Number of Levels : 2
- Terminal – Width : 6.2mm
- Termination Style : Screw
- Current – IEC : 26 A
- Voltage – IEC : 400V
- Voltage – UL : 300V
- Wire Gauge or Range – mm² : 0.2-4mm²
- Wire Gauge or Range – AWG : 12-26 AWG
- Color : Gray
1 Pc(s) In Stock
SKU
2800004

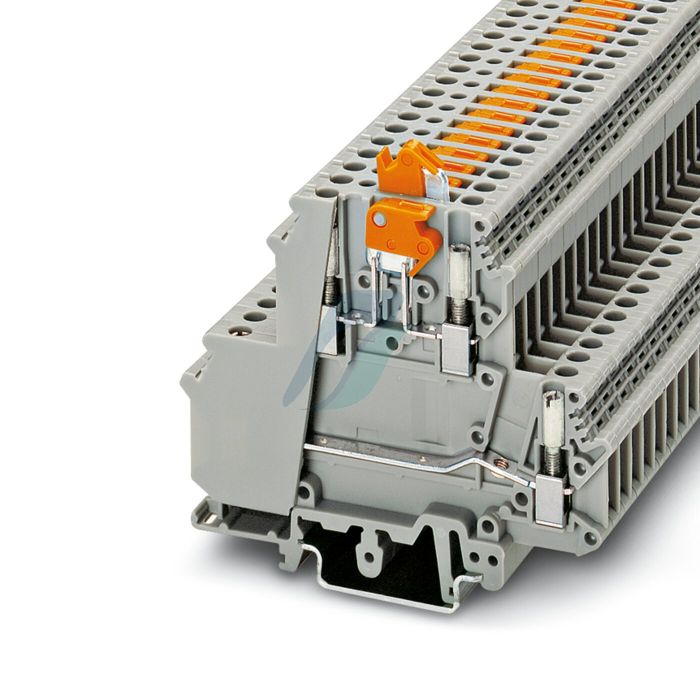

Phoenix Contact Knife disconnect terminal block - UKK 5-MTK-P/P
₹111.39
For 1 Pc(s)
- 2800004
- 85369010
- Pc(s)
- Phoenix Contact
- 24.6
- No
- GST 18%
- India
Product Details
Knife disconnect terminal block, With test socket screws for insertion of test plugs, nom. voltage: 400 V, nominal current: 26 A, 1st and 2nd level, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, 2nd level, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, mounting: NS 35/7,5, NS 35/15, NS 32, color: gray
