Phoenix Contact D-SUB bus connector - SUBCON-PLUS-CAN

₹2,576.00 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 2744694
HSN Code 85366990
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 68.9
ROHS Compliance No
Tax GST 18%
Country of Origin Germany

Product Details

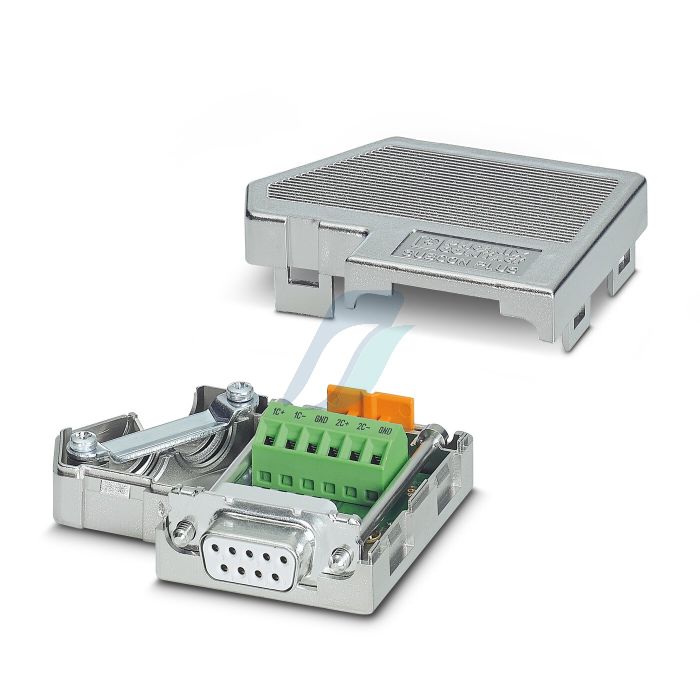

D-SUB connector, 9-pos. female connector, two 35° cable entries to one terminal block row, bus system: CAN, CANopen®, SafetyBUS p up to 1 Mbps, termination resistor can be switched on via slide switch, pin assignment: 2, 3, 7; screw connection terminal blocks

Product Specification

Number of positions : 9
Number of rows : 2
Connector Type : Receptacle, Female Sockets
Connector Style : D-Sub
Mounting Type : Free Hanging (In-Line)
Shell Size, Connector Layout : 1 (DE, E)
Contact Type : Signal
Flange Feature : Cable Side, Male Jackscrew (4-40)
Termination : Terminal Block
Current Rating (Amps) : 1A
Features : Shielded
Voltage Rating : 60V
