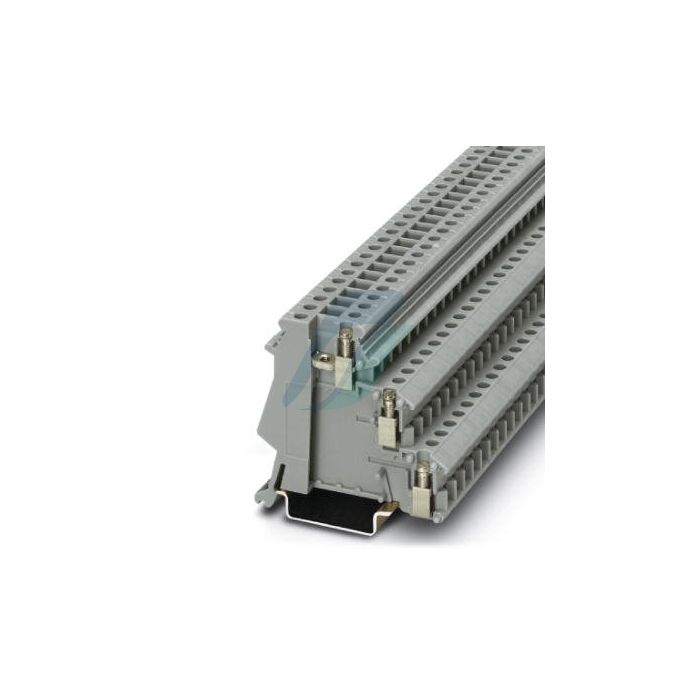

Phoenix Contact Sensor/Actuator Terminal Block - DIK 1,5

₹39.69 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 2715966
HSN Code 85369010
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 11-2
ROHS Compliance No
Tax GST 18%
Country of Origin India

Product Details

Sensor/actuator terminal block, nom. voltage: 250 V, nominal current: 24 A, connection method: Screw connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm2, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray

Product Specification

Number of connections : 3
Number of rows : 3
Potentials : 3
Color : Gray
Maximum power dissipation for nominal condition : 0.77 W
Rated surge voltage : 4 kV
Mounting Style : DIN Rail
Wire gauge max : 12 AWG
Wire Gauge Min : 24 AWG
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 60 C
