Phoenix Contact Upper Part of Housing - EH 90-C SS/ABS GN

₹108.50 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 2202946
HSN Code 85389099
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 27
ROHS Compliance No
Tax GST 18%
Country of Origin India

Product Details

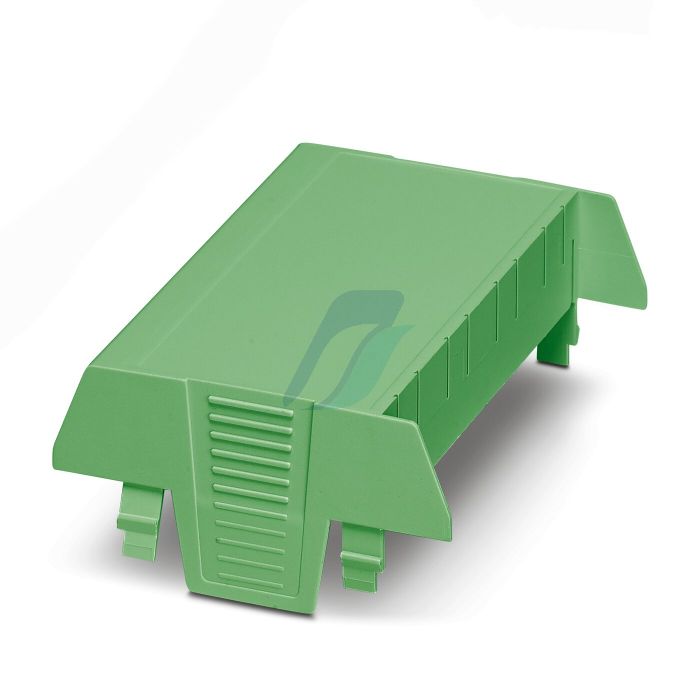

DIN rail housing, Upper housing part, tall design, connection opening on one side, width: 90.1 mm, height: 75.27 mm, depth: 36.95 mm, color: green (6021)

Product Specification

Type : Upper housing part, tall design, connection opening on one side
Housing type : DIN rail housing
Housing series : EH
Color : Green
Housing material : ABS
Flammability rating according to UL 94 : HB
Max. IP code to attain : IP20
Ambient temperature (operation) : -40 °C ... 80 °C (depending on power dissipation)
Ambient temperature (storage/transport) : -40 °C ... 55 °C
Ambient temperature (assembly) : -5 °C ... 80 °C
Type of PCB mount : Latching
Mounting type : Snap in
Mounting position : Vertical (horizontal DIN rail)
