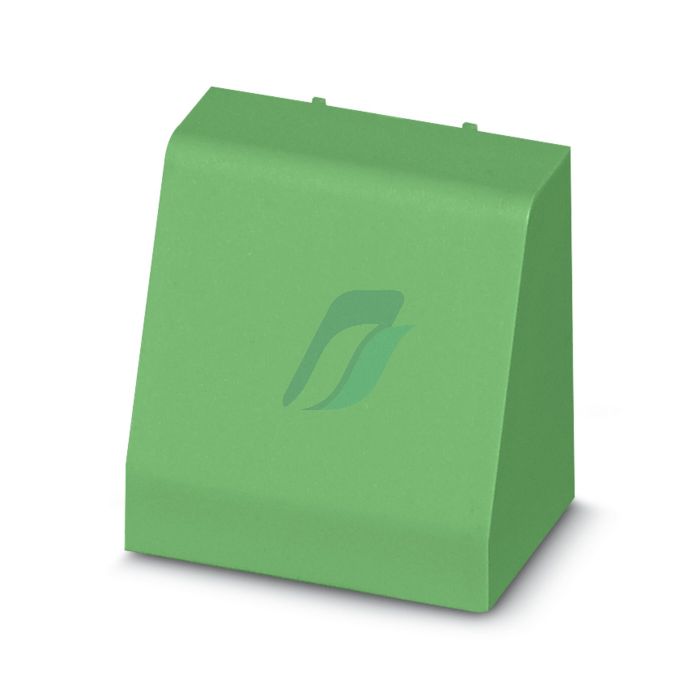

Phoenix Contact Filler Plugs - EH 22,5-FP/ABS GN

₹9.99

Product Specification

Type : Filler plug for unoccupied terminal points (tall design)
Housing type : DIN rail housing
Housing series : EH
Color : Green
Housing material : ABS
Flammability rating according to UL 94 : HB
Max. IP code to attain : IP20
Ambient temperature (operation) : -40 °C ... 80 °C (depending on power dissipation)
Ambient temperature (storage/transport) : -40 °C ... 70 °C
Ambient temperature (assembly) : -5 °C ... 80 °C
Type of PCB mount : Latching
Mounting type : Latching with upper housing part

Product Details

DIN rail housing, Filler plug for unoccupied terminal points (tall design), width: 21.35 mm, height: 19.65 mm, depth: 13.67 mm, color: green (6021)
