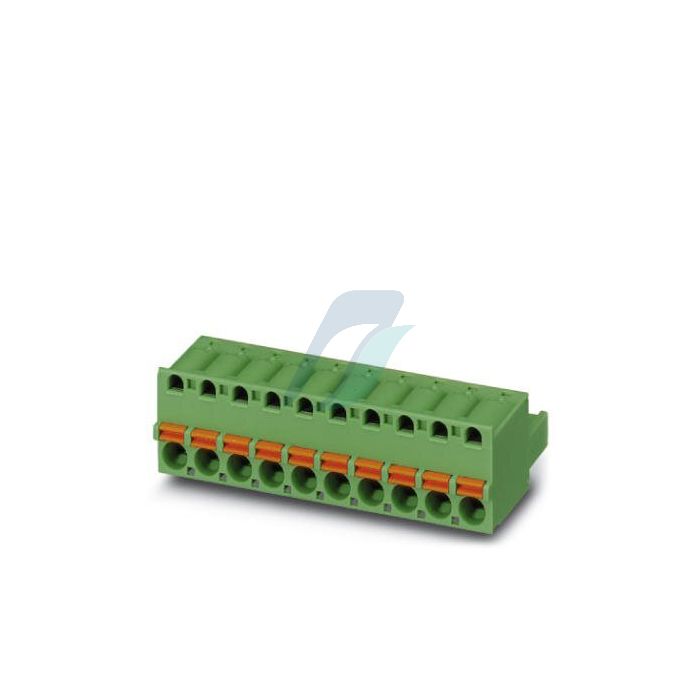

Phoenix Contact Printed-Circuit Board Connector - FKC 2,5/ 8-ST-5,08

₹185.91 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 1873113
HSN Code 85366990
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 13.6
ROHS Compliance No
Tax GST 18%
Country of Origin Germany

Product Details

PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 8, Number of rows: 1, Number of positions per row: 8, number of connections: 8, product range: FKC 2,5/..-ST, pitch: 5.08 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, Locking clip: - Locking clip, plug-in system: CLASSIC COMBICON, Locking: without, mounting: without, type of packaging: packed in cardboard

Product Specification

Number of positions : 8
Number of connections : 8
Number of rows : 1
Maximum load current : 12 A
Nominal cross section : 2.5 mm²
Type of contact : Female connector
Connection method : Push-in spring connection
Connection direction of the conductor to plug-in direction : 0 °
Conductor cross section solid : 0.2 mm² ... 2.5 mm²
Stripping length : 10 mm
Contact material : Cu alloy
Surface characteristics : hot-dip tin-plated
Metal surface terminal point (top layer) : Tin (4 - 8 µm Sn)
Metal surface contact area (top layer) : Tin (4 - 8 µm Sn)
Housing color : green (6021)
