198 Pc(s) In Stock
SKU
1873090

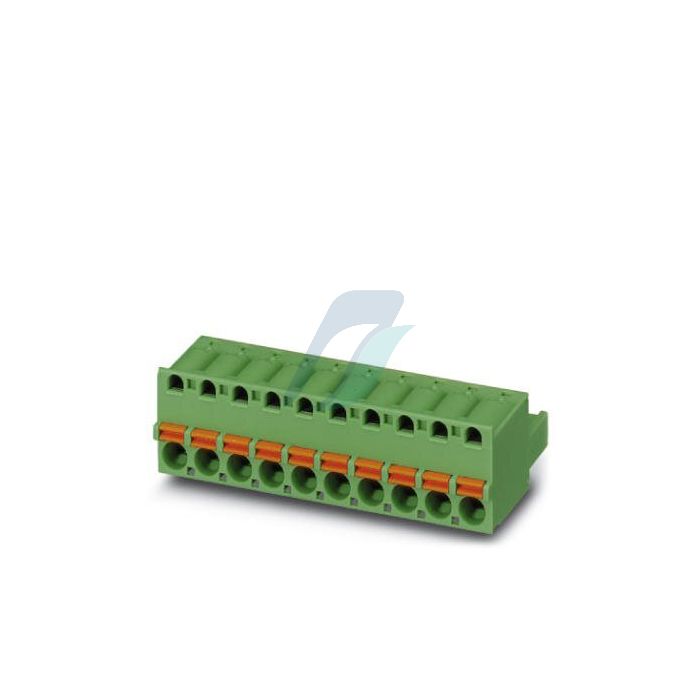

Phoenix Contact Printed-Circuit Board Connector - FKC 2,5/ 6-ST-5,08

₹144.90 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • 1873090
  • 85366990
  • Pc(s)
  • Phoenix Contact
  • 10.2
  • No
  • GST 18%
  • Germany
Product Details
PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 6, Number of rows: 1, Number of positions per row: 6, number of connections: 6, product range: FKC 2,5/..-ST, pitch: 5.08 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, Locking clip: - Locking clip, plug-in system: CLASSIC COMBICON, Locking: without, mounting: without, type of packaging: packed in cardboard
Product Specification
  • Product Category : Pluggable Terminal Blocks
  • Product : Plugs
  • Number of Positions : 6 Position
  • Pitch : 5.08 mm
  • Connection Method : Push-In
  • Current Rating : 12 A
  • Voltage Rating : 320 V
  • Contact Material : Copper
  • Contact Plating : Tin
  • Flammability Rating : UL 94 V-0
  • Height : 15 mm
  • Length : 25.73 mm
  • Width : 31.1 mm
  • Housing Material : Polyamide (PA)
  • Product Type : Pluggable Terminal Blocks
