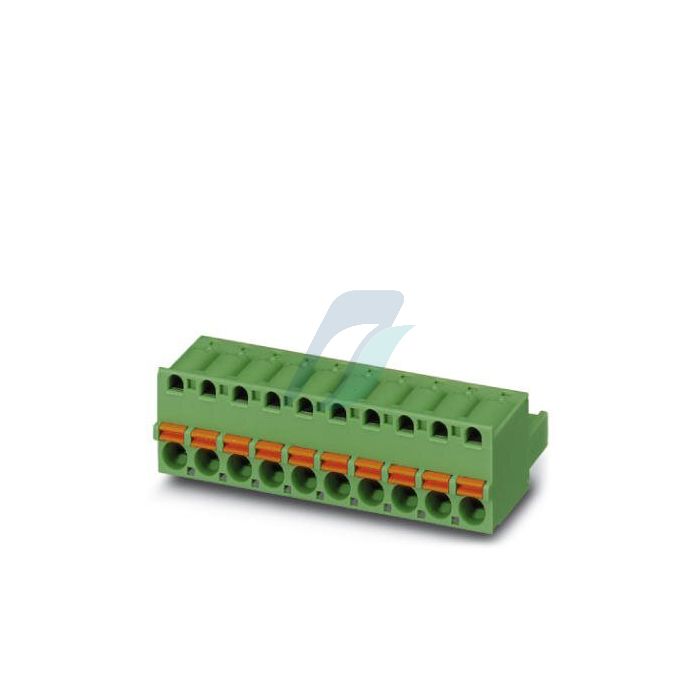

Phoenix Contact Printed-Circuit Board Connector - FKC 2,5/ 3-ST-5,08

₹70.29 For 1 Pc(s)

Notify Me

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 1873061
HSN Code 85366990
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 5.1
ROHS Compliance No
Tax GST 18%
Country of Origin Germany

Product Details

PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 3, Number of rows: 1, Number of positions per row: 3, number of connections: 3, product range: FKC 2,5/..-ST, pitch: 5.08 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, Locking clip: - Locking clip, plug-in system: CLASSIC COMBICON, Locking: without, mounting: without, type of packaging: packed in cardboard

Product Specification

Number of positions : 3
Maximum load current : 12 A
Rated voltage (II/2) : 630 V
Rated voltage (III/2) : 320 V
Nominal current IN : 12 A
Nominal cross section : 2.5 mm²
Connection method : Push-in spring connection
Recommended crimping tool : 1212034 CRIMPFOX 6
ferrules without insulating collar, according to DIN 46228‑1 : Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Contact material : Cu alloy
Housing color : Green
Insulating material : PA
Flammability rating according to UL 94 : V0
