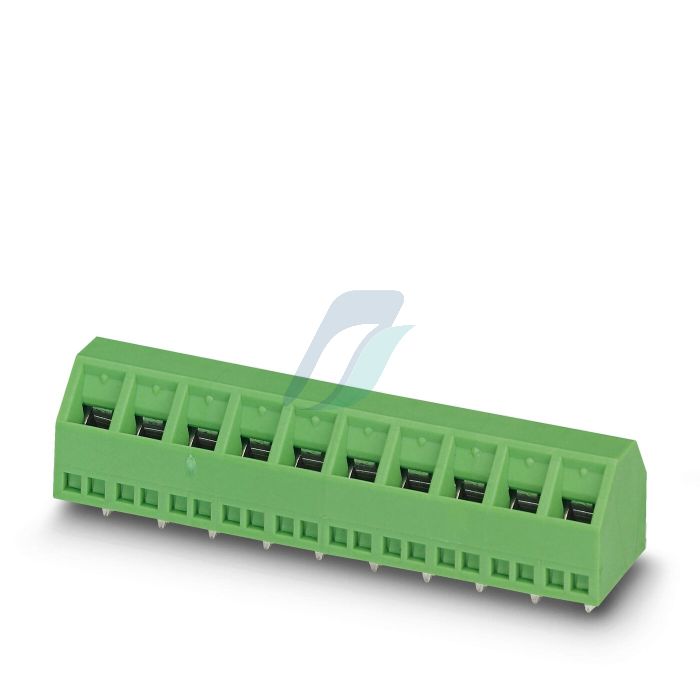

Phoenix Contact PCB terminal block - SMKDSN 1,5/ 2-5,08

₹48.48 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 1869211
HSN Code 85369010
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 2.276
ROHS Compliance No
Tax GST 18%
Country of Origin Germany

Product Details

PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm2, number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: SMKDSN 1,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard

Product Specification

Number of Levels : 1
Positions Per Level : 2
Pitch : 0.200" (5.08mm)
Mating Orientation : 55° (125°) Angle with Board
Termination Style : Screw - Rising Cage Clamp
Mounting Type : Through Hole
Current – IEC : 10A
Voltage – IEC : 300 V
Wire Gauge : 14-30 AWG
Screw Thread : M3
Housing Material : Polyamide (PA), Nylon
Torque – Screw : 0.5-0.6 Nm (4.4-5.3 Lb-In)
