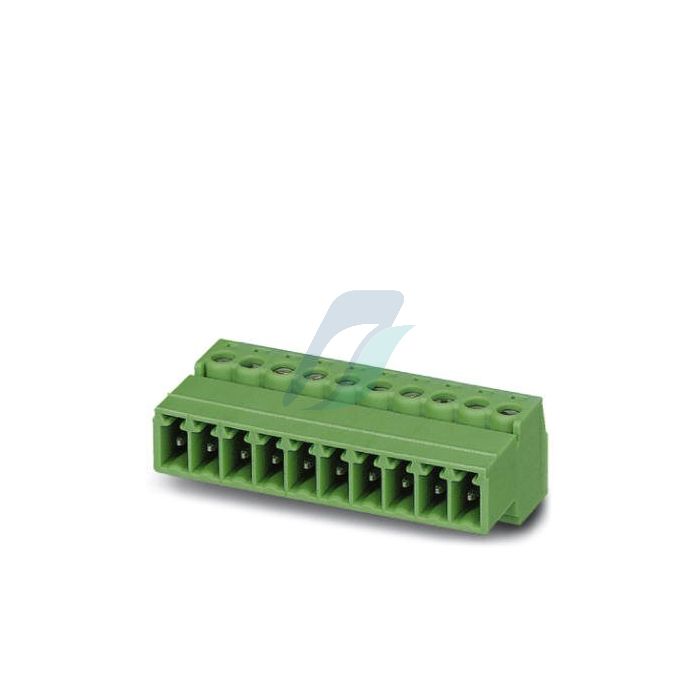

Phoenix Contact Printed-Circuit Board Connector - IMC 1,5/10-ST-3,81

₹565.71 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 1857964
HSN Code 85366990
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 8.2
ROHS Compliance No
Tax GST 18%
Country of Origin Poland

Product Details

PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, number of potentials: 10, Number of rows: 1, Number of positions per row: 10, number of connections: 10, product range: IMC 1,5/..-ST, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, plug-in system: MINI COMBICON, Locking: without, mounting: without, type of packaging: packed in cardboard

Product Specification

Number of Positions : 10
Number of connections : 10
Number of rows : 1
Maximum load current : 8 A
Contact material : Cu alloy
Surface characteristics : Tin-plated
Metal surface terminal point (top layer) : Tin (5 - 7 µm Sn)
Metal surface terminal point (middle layer) : Nickel (2 - 3 µm Ni)
Metal surface contact area (top layer) : Tin (5 - 7 µm Sn)
Metal surface contact area (middle layer) : Nickel (2 - 3 µm Ni)
Housing color green : (6021)
Insulating material : PA
Flammability rating according to UL 94 : V0
Product Category : Pluggable Terminal Blocks
Product : Plugs - Inverted
