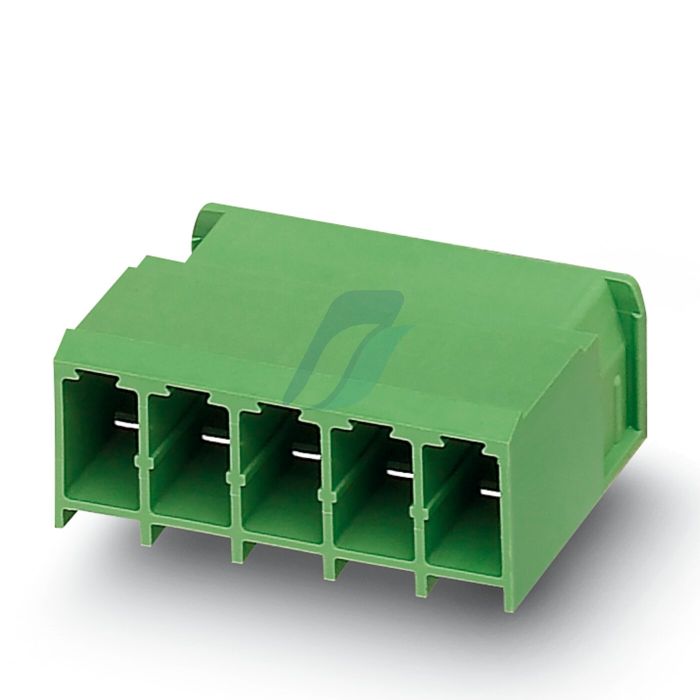

Phoenix Contact PCB header - PC 4/ 3-G-7,62

₹106.44 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • 1804807
  • 85366930
  • Pc(s)
  • Phoenix Contact
  • 5.823
  • No
  • GST 18%
  • Bulgaria
Product Details
PCB headers, nominal cross section: 4 mm2, color: green, nominal current: 20 A, rated voltage (III/2): 630 V, contact surface: Tin, type of contact: Male connector, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: PC 4/..-G, pitch: 7.62 mm, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 2, plug-in system: COMBICON PC 4, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard, Mounting flange: Accessory Item No. 1827570
Product Specification
  • Number of positions : 3
  • Number of Levels : 1
  • Pitch : 0.300" (7.62mm)
  • Header Orientation : 90°, Right Angle
  • Termination Style : Solder
  • Mounting Type : Through Hole
  • Current – IEC : 20A
  • Voltage – IEC : 630 V
  • Material Flammability Rating : UL94 V-0
  • Color : Green
  • Contact Mating Finish : Tin
  • Housing Material : Polyamide (PA), Nylon
