348 Pc(s) In Stock
SKU
1803662

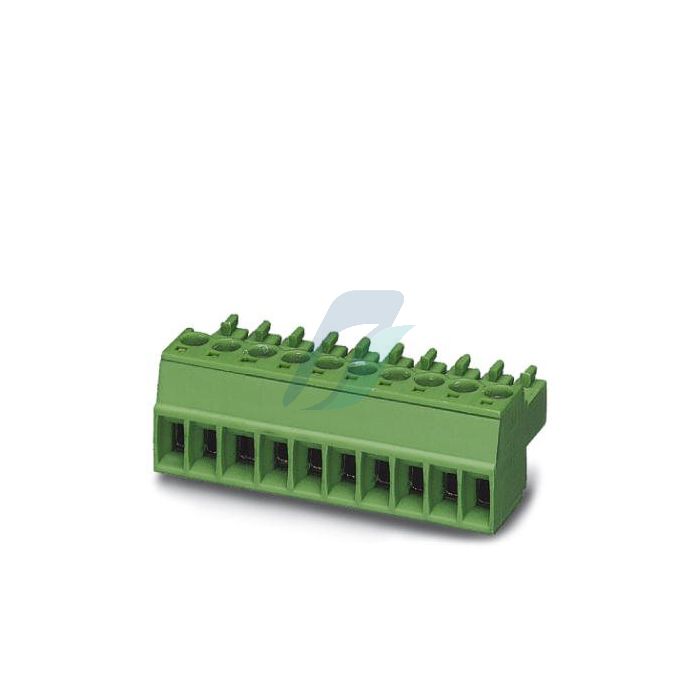

Phoenix Contact Printed-Circuit Board Connector - MC 1,5/11-ST-3,81

₹120.27 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • 1803662
  • 85366990
  • Pc(s)
  • Phoenix Contact
  • 7.8
  • No
  • GST 18%
  • India
Product Details
PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Female connector, number of potentials: 11, Number of rows: 1, Number of positions per row: 11, number of connections: 11, product range: MC 1,5/..-ST, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, plug-in system: MINI COMBICON, Locking: without, mounting: without, type of packaging: packed in cardboard
Product Specification
  • Number of connections : 11
  • Number of connections : 11
  • Number of rows : 1
  • Maximum load current : 8 A
  • Product Category : Pluggable Terminal Blocks
  • Product : Plugs
  • Pitch : 3.81 mm
  • Contact Material : Copper
  • Contact Plating : Tin
  • Flammability Rating : UL 94 V-0
  • Height : 11.1 mm
  • Length : 16.1 mm
  • Width : 42.7 mm
