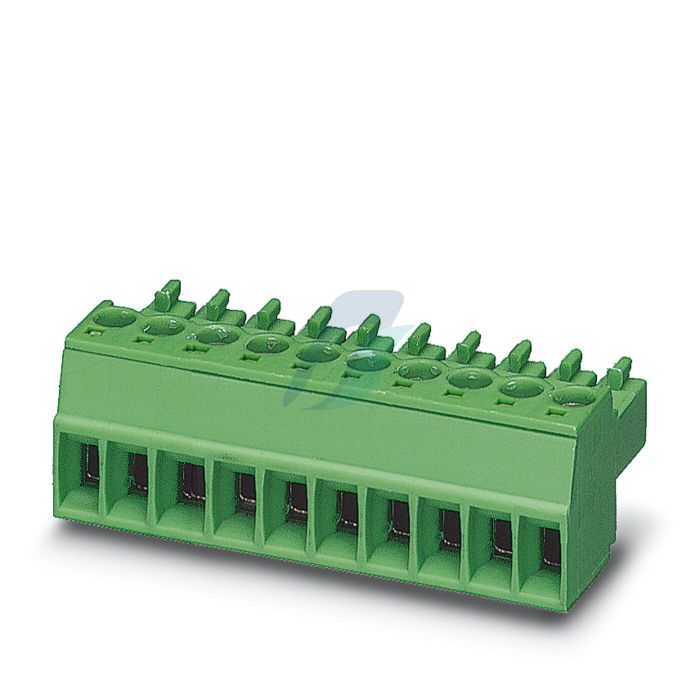

Phoenix Contact PCB connector - MC 1,5/ 3-ST-3,81

₹32.62 For 1 Pc(s)

Notify Me

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 1803581
HSN Code 85366990
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 2.3
ROHS Compliance No
Tax GST 18%
Country of Origin India

Product Details

PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Female connector, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: MC 1,5/..-ST, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, locking: without, mounting: without, type of packaging: packed in cardboard

Product Specification

Number of positions : 3
Number of Levels : 1
Pitch : 0.150" (3.81mm)
Plug Wire Entry : 180°
Termination Style : Screw - Rising Cage Clamp
Mounting Type : Free Hanging (In-Line)
Current – IEC : 8A
Voltage – IEC : 320 V
Wire Gauge or Range – mm² : 0.14-1.5mm²
Color : Green
Features : Material Flammability Rating : UL94 V-0
Torque – Screw : 0.22-0.25 Nm (1.9-2.2 Lb-In)
