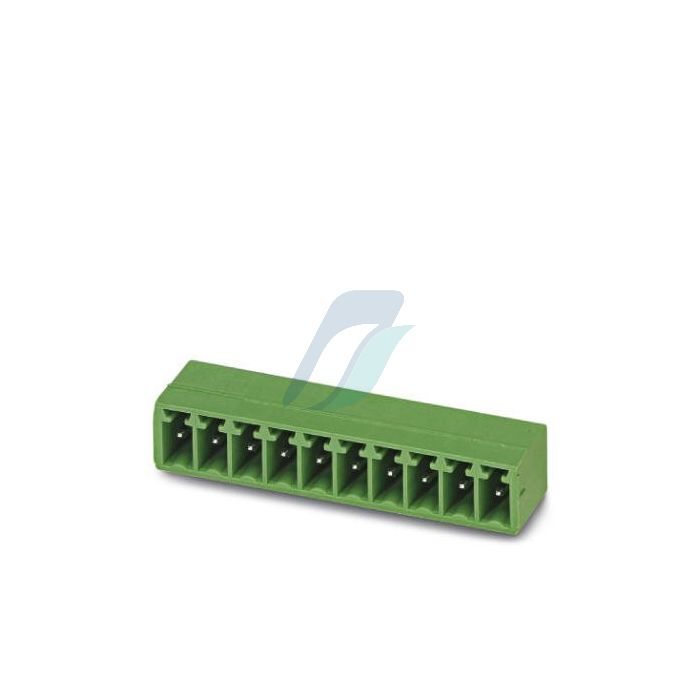

Phoenix Contact Printed-Circuit Board Connector - MC 1,5/11-G-3,81

₹43.33 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 1803361
HSN Code 85366930
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 3.0
ROHS Compliance No
Tax GST 18%
Country of Origin India

Product Details

PCB headers, nominal cross section: 1.5 mm2, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, number of potentials: 11, Number of rows: 1, Number of positions per row: 11, number of connections: 11, product range: MC 1,5/..-G, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, plug-in system: MINI COMBICON, Pin connector pattern alignment: Standard, Locking: without, mounting: without, type of packaging: packed in cardboard

Product Specification

Number of connections : 11
Number of connections : 11
Number of rows : 1
Product Category : Pluggable Terminal Blocks
Product : Headers
Pitch : 3.81 mm
Current Rating : 8 A
Color : Green
Contact Material : Copper
Contact Plating : Tin
Flammability Rating : UL 94 V-0
Height : 10.65 mm
Length : 9.2 mm
Width : 43.3 mm
