50 Pc(s) In Stock
SKU
1792922

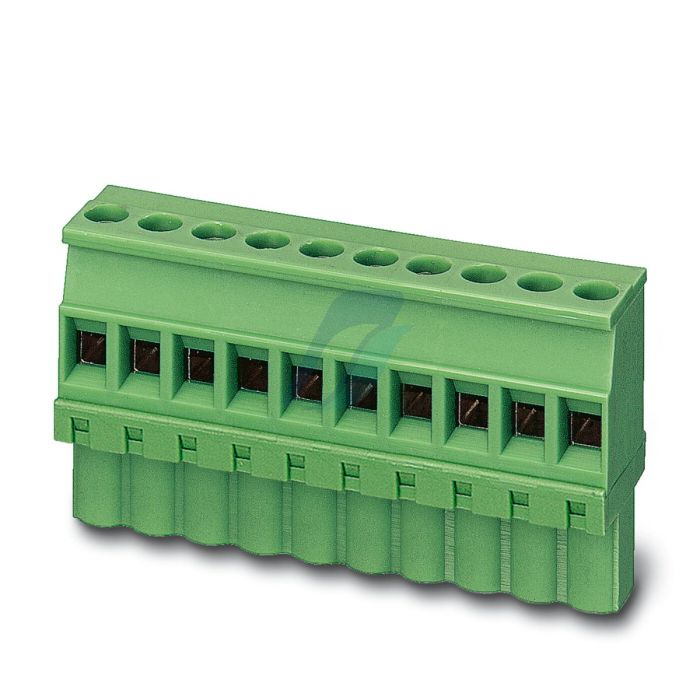

Phoenix Contact PCB connector - MVSTBW 2,5/19-ST-5,08

₹211.76 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • 1792922
  • 85366990
  • Pc(s)
  • Phoenix Contact
  • 41.68
  • No
  • GST 18%
  • India
Product Details
PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 19, number of rows: 1, number of positions: 19, number of connections: 19, product range: MVSTBW 2,5/..-ST, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: -90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard
Product Specification
  • Number of positions : 19
  • Number of Levels : 1
  • Pitch : 0.200" (5.08mm)
  • Plug Wire Entry : 270°
  • Termination Style : Screw - Rising Cage Clamp
  • Mounting Type : Free Hanging (In-Line)
  • Current – IEC : 12A
  • Voltage – IEC : 630 V
  • Wire Gauge or Range – mm² : 0.2-2.5mm²
  • Color : Green
  • Features : Retention Latches (Wire Side)
  • Torque – Screw : 0.5-0.6 Nm (4.4-5.3 Lb-In)
