- Number of Levels : 1
- Type : Plug Connection - Ganged
- Mounting Type : DIN Rail
- Number of Levels : 1
- Number of Positions : 8
- Termination Style : Plug Receptacles, Screw
- Current – IEC : 12A
- Voltage – IEC : 300 V
- Wire Gauge or Range – mm²: 0.2-2.5mm²
- Wire Strip Length : 7mm
- Material – Insulation : Polyamide (PA), Nylon
- Material Flammability Rating : UL94 V-2
94 Pc(s) In Stock
SKU
1788787

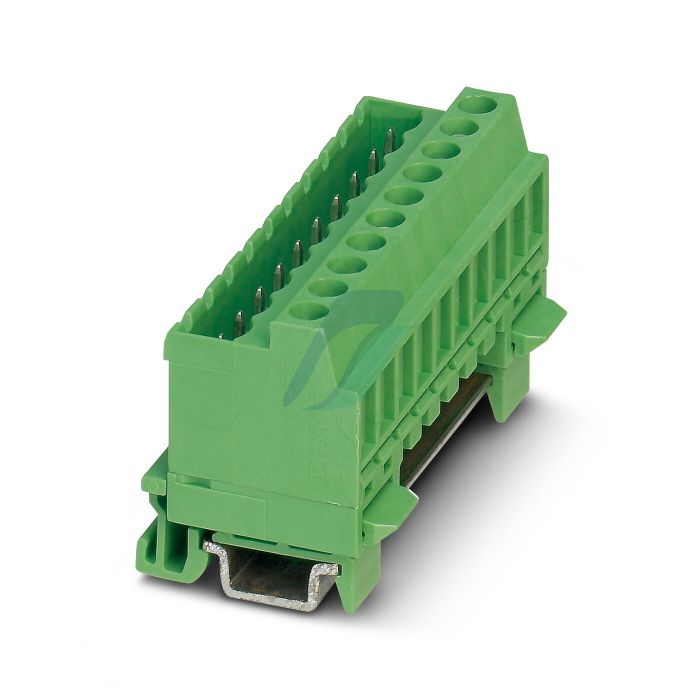

Phoenix Contact DIN rail connector - MSTBVK 2,5/ 8-G-5,08
₹109.79
For 1 Pc(s)
- 1788787
- 85366990
- Pc(s)
- Phoenix Contact
- 20.721
- No
- GST 18%
- India
Product Details
DIN rail connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: MSTBVK 2,5/..-G, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, conductor/PCB connection direction: 0 °, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard
Product Specification
