- Number of connections : 3
- Number of connections : 3
- Number of rows : 1
- Maximum load current : 32 A
- Contact material : Cu alloy
- Surface characteristics : Tin-plated
- Metal surface terminal point (top layer) : Tin (5 - 7 µm Sn)
- Metal surface contact area (middle layer) : Nickel (5 – 7 µm Ni)
- Metal surface soldering area (top layer) : Tin (2 - 3 µm Sn)
3 Pc(s) In Stock
SKU
1771260

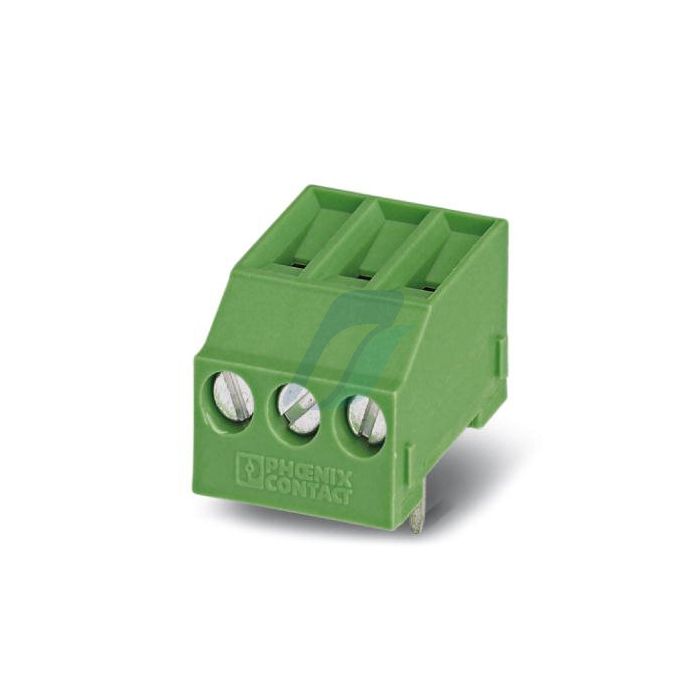

Phoenix Contact PCB terminal block - MKDSFW 3/ 3
₹182.73
For 1 Pc(s)
- 1771260
- 85369010
- Pc(s)
- Phoenix Contact
- 6.2
- No
- GST 18%
- Poland
Product Details
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm2, number of potentials: 3, Number of rows: 1, Number of positions per row: 3, product range: MKDSFW 3, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
Product Specification
