- Number of positions : 2
- Number of connections : 2
- Number of rows : 1
- Maximum load current : 12 A
- Nominal cross section : 2.5 mm²
- Type of contact : Female connector
- Conductor cross section solid : 0.2 mm² ... 2.5 mm²
- Contact material : Cu alloy
- Surface characteristics : hot-dip tin-plated
- Metal surface terminal point (top layer) : Tin (5 - 7 µm Sn)
- Metal surface contact area (top layer) : Tin (5 - 7 µm Sn)
- Housing color green : (6021)
- Insulating material : PA
- Flammability rating according to UL 94 : V0
- Product Category : Pluggable Terminal Blocks
31 Pc(s) In Stock
SKU
1766990

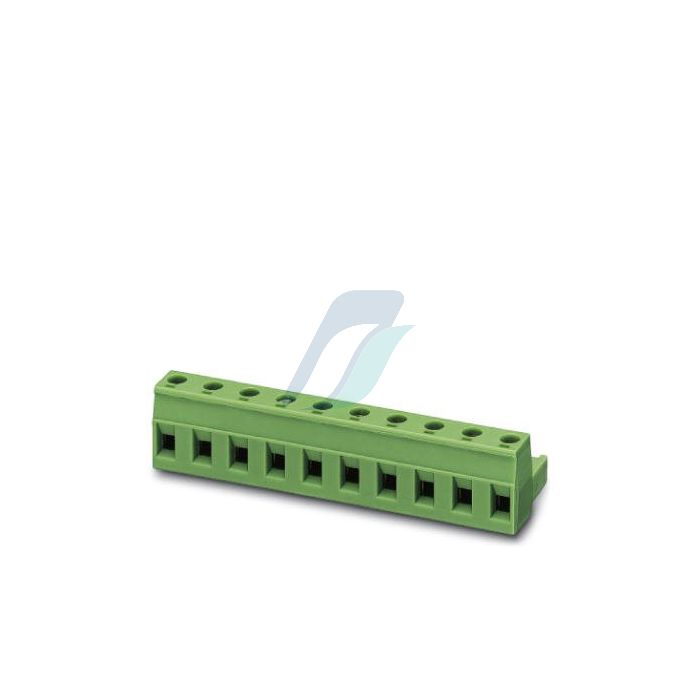

Phoenix Contact Plug - GMSTB 2,5/ 2-ST-7,62
₹60.94
- 1766990
- 85366990
- Pc(s)
- Phoenix Contact
- 3.7
- No
- GST 18%
- Germany
Product Specification
Product Details
PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 630 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, Number of rows: 1, Number of positions per row: 2, number of connections: 2, product range: GMSTB 2,5/..-ST, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, Locking clip: - Locking clip, plug-in system: CLASSIC COMBICON, Locking: without, mounting: without, type of packaging: packed in cardboard
