- Number of positions : 6
- Number of connections : 6
- Number of rows : 1
- Maximum load current : 12 A
- Contact material : Cu alloy
- Surface characteristics : Tin-plated
- Metal surface contact area (top layer) : Tin (3 - 5 µm Sn)
- Metal surface contact area (middle layer) : Nickel (1.3 - 3 µm Ni)
- Metal surface soldering area (top layer) : Tin (3 - 5 µm Sn)
- Metal surface soldering area (middle layer) : Nickel (1.3 - 3 µm Ni)
- Housing color : green (6021)
- Housing Material : Polyamide (PA)
- Flammability rating according to UL 94 : V0
- Product Category : Pluggable Terminal Blocks
- Product : Headers
926 Pc(s) In Stock
SKU
1766275

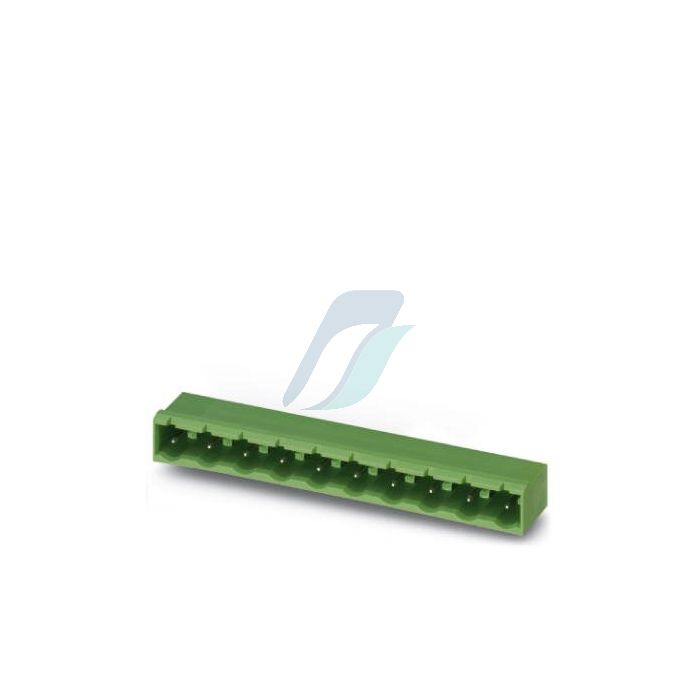

Phoenix Contact PCB header - GMSTBA 2,5/ 6-G-7,62
₹45.51
For 1 Pc(s)
- 1766275
- 85366930
- Pc(s)
- Phoenix Contact
- 3.0
- No
- GST 18%
- Germany
Product Details
PCB headers, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 630 V, contact surface: Tin, type of contact: Male connector, number of potentials: 6, Number of rows: 1, Number of positions per row: 6, number of connections: 6, product range: GMSTBA 2,5/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.2 mm, plug-in system: CLASSIC COMBICON, Pin connector pattern alignment: Standard, Locking: without, mounting: without, type of packaging: packed in cardboard
