- Number of Levels : 1
- Positions Per Level : 8
- Pitch : 0.200" (5.08mm)
- Current – IEC : 10A
- Voltage – IEC : 630 V
- Header Orientation : Vertical
- Termination Style : Solder
- Mounting Type : Through Hole
- Material Flammability Rating : UL94 V-0
- Color : Green
- Contact Mating Finish : Tin
- Housing Material : Polyamide (PA), Nylon
2 Pc(s) In Stock
SKU
1762567

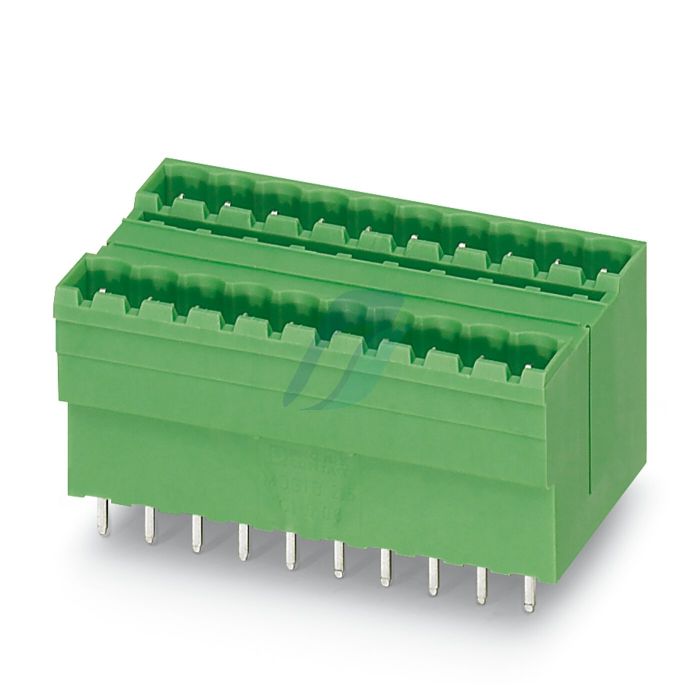

Phoenix Contact PCB header - MDSTBV 2,5/ 8-G1-5,08
₹305.00
For 1 Pc(s)
- 1762567
- 85366930
- Pc(s)
- Phoenix Contact
- 13.416
- No
- GST 18%
- Poland
Product Details
PCB headers, nominal cross section: 2.5 mm2, color: green, nominal current: 10 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 16, number of rows: 2, number of positions: 8, number of connections: 16, product range: MDSTBV 2,5/..-G1, pitch: 5.08 mm, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard, In combination with MVSTB or FKCV plug components, both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with TMSTBP plug components is not possible!
