- Number of Levels : 1
- Positions Per Level : 24
- Pitch : 0.200" (5.08mm)
- Current – IEC : 12A
- Voltage – IEC : 400 V
- Header Orientation : 90°, Right Angle
- Termination Style : Solder
- Mounting Type : Through Hole
- Material Flammability Rating : UL94 V-0
- Color : Green
- Contact Mating Finish : Tin
- Housing Material : Polyamide (PA), Nylon
Out of stock
SKU
1759237

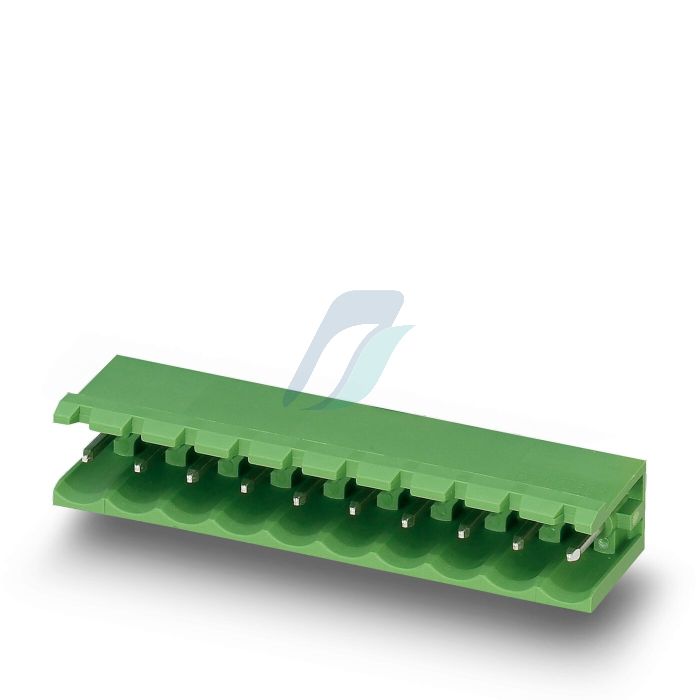

Phoenix Contact PCB header - MSTB 2,5/24-G-5,08
₹151.32
For 1 Pc(s)
- 1759237
- 85366930
- Pc(s)
- Phoenix Contact
- 10.06
- No
- GST 18%
- India
Product Details
PCB headers, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 24, number of rows: 1, number of positions: 24, number of connections: 24, product range: MSTB 2,5/..-G, pitch: 5.08 mm, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard
Product Specification
