Out of stock
SKU
1758160

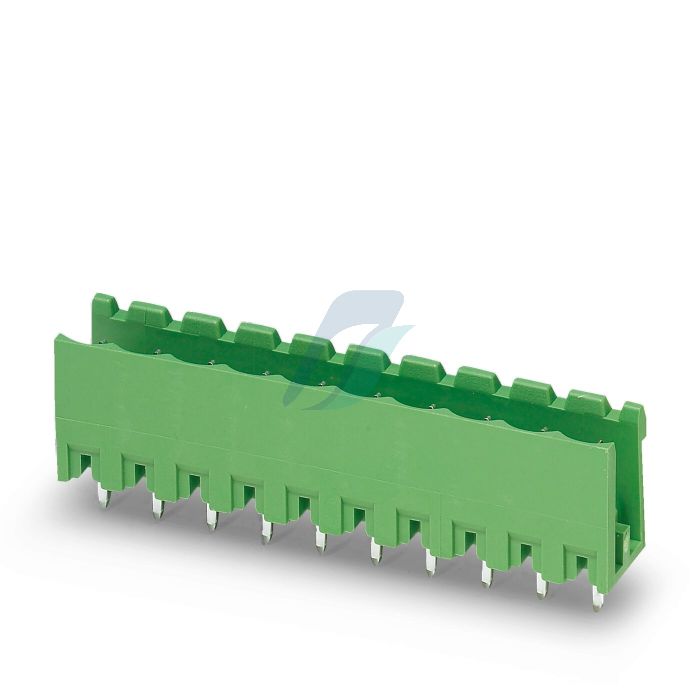

Phoenix Contact PCB header - MSTBV 2,5/17-G-5,08

₹68.17 For 1 Pc(s)
  • 1758160
  • 85366930
  • Pc(s)
  • Phoenix Contact
  • 7.2
  • No
  • GST 18%
  • India
Product Details
PCB headers, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 17, number of rows: 1, number of positions: 17, number of connections: 17, product range: MSTBV 2,5/..-G, pitch: 5.08 mm, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard
Product Specification
  • Number of Levels : 1
  • Positions Per Level : 17
  • Pitch : 0.200" (5.08mm)
  • Current – IEC : 12A
  • Voltage – IEC : 400 V
  • Header Orientation :Vertical
  • Termination Style : Solder
  • Mounting Type : Through Hole
  • Material Flammability Rating : UL94 V-0
  • Color : Green
  • Contact Mating Finish : Tin
  • Housing Material : Polyamide (PA), Nylon
