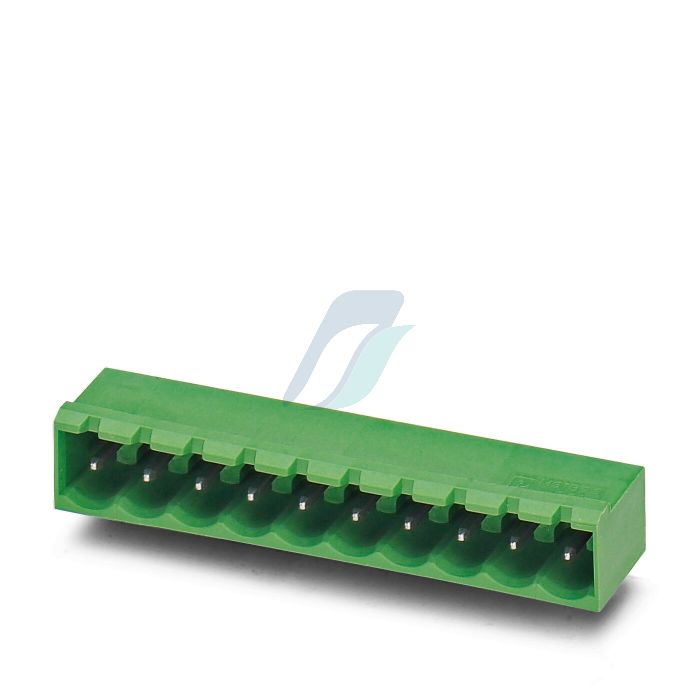

Phoenix Contact PCB header - MSTBA 2,5/13-G-5,08

₹57.15 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 1757352
HSN Code 85366930
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 5.84
ROHS Compliance No
Tax GST 18%
Country of Origin India

Product Details

PCB headers, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 13, number of rows: 1, number of positions: 13, number of connections: 13, product range: MSTBA 2,5/..-G, pitch: 5.08 mm, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without

Product Specification

Number of Levels : 1
Positions Per Level : 13
Pitch : 0.200" (5.08mm)
Current – IEC : 12A
Voltage – IEC : 400 V
Header Orientation : 90°, Right Angle
Termination Style : Solder
Mounting Type : Through Hole
Material Flammability Rating : UL94 V-0
Color : Green
Contact Mating Finish : Tin
Housing Material : Polyamide (PA), Nylon
