- Number of Levels : 1
- Positions Per Level : 10
- Pitch : 0.200" (5.08mm)
- Current – IEC : 12A
- Voltage – IEC : 630 V
- Termination Style : Screw - Rising Cage Clamp
- Plug Wire Entry : 180°
- Mounting Type : Free Hanging (In-Line)
- Voltage – UL : 300 V
- Color : Green
- Contact Mating Finish : Tin
- Screw Size : M3
Out of stock
SKU
1757093

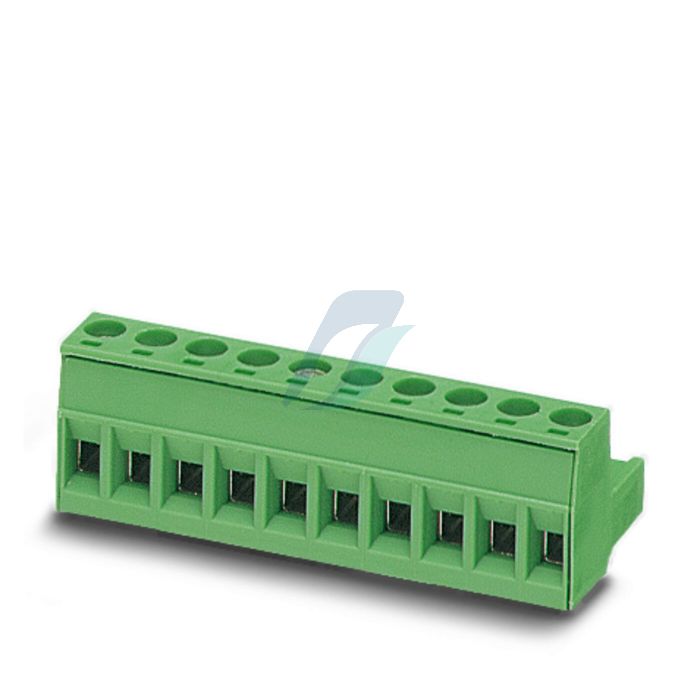

Phoenix Contact PCB connector - MSTB 2,5/10-ST-5,08
₹115.72
For 1 Pc(s)
- 1757093
- 85366990
- Pc(s)
- Phoenix Contact
- 17.05
- No
- GST 18%
- India
Product Details
PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 10, number of rows: 1, number of positions: 10, number of connections: 10, product range: MSTB 2,5/..-ST, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard
