Out of stock
SKU
1731035

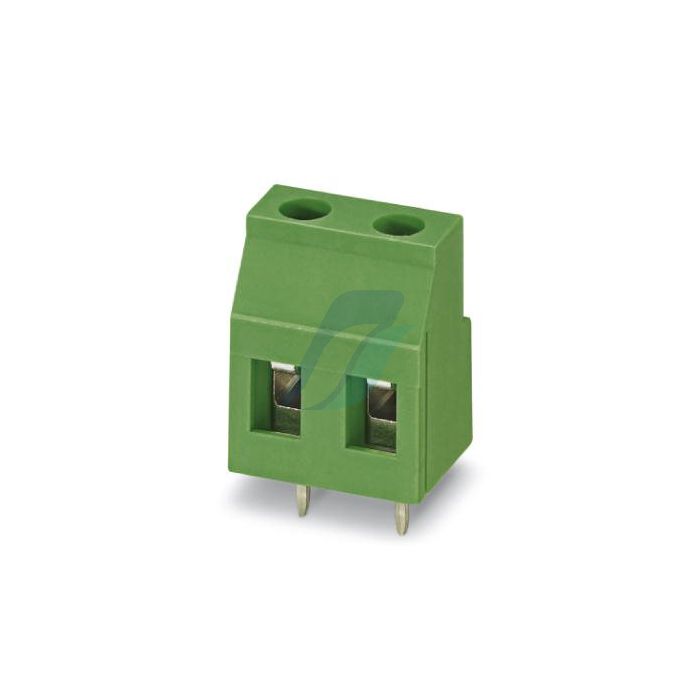

Phoenix Contact PCB terminal block - GMKDS 3/ 3

₹15.59 For 1 Pc(s)
  • 1731035
  • 85369010
  • Pc(s)
  • Phoenix Contact
  • 6.6
  • No
  • GST 18%
  • India
Product Details
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 630 V, nominal cross section: 2.5 mm2, number of potentials: 3, Number of rows: 1, Number of positions per row: 3, product range: GMKDS 3, pitch: 7.5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
Product Specification
  • Number of positions : 1
  • Number of connections : 3
  • Number of rows : 1
  • Maximum load current : 30 A
  • Contact material : Cu alloy
  • Surface characteristics : Tin-plated
  • Metal surface terminal point (top layer) : Tin (4 - 8 µm Sn)
  • Metal surface soldering area (top layer) : Tin (4 - 8 µm Sn)
  • Housing color : green (6021)
  • Insulating material : PA
  • Flammability rating according to UL 94 : V0
  • Conductor cross section solid : 0.2 mm² ... 4 mm²
  • Product Category : Fixed Terminal Blocks
  • Pitch : 7.5 mm
  • Current Rating : 24 A
