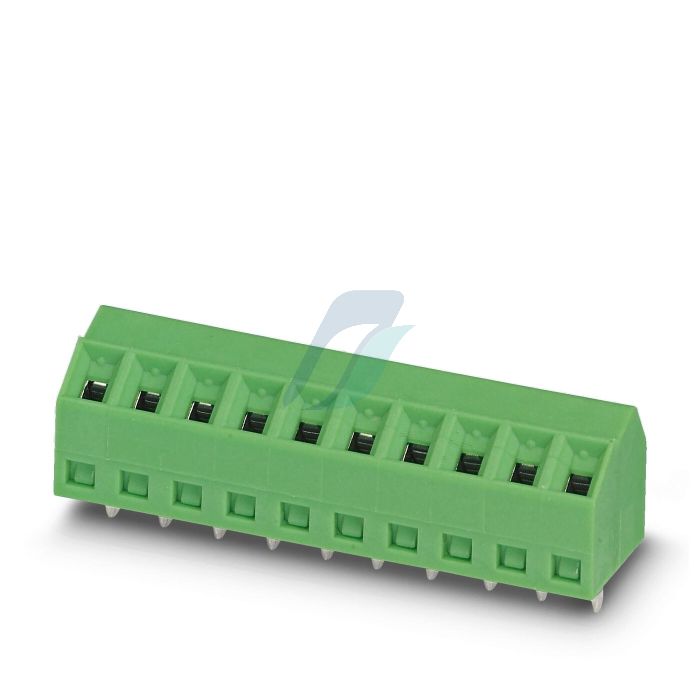

Phoenix Contact PCB terminal block - SMKDS 1/ 2-3,81

₹49.77 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • 1728284
  • 85369010
  • Pc(s)
  • Phoenix Contact
  • 1.22
  • No
  • GST 18%
  • Germany
Product Details
PCB terminal block, nominal current: 10 A, rated voltage (III/2): 200 V, nominal cross section: 1 mm2, number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: SMKDS 1, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 35 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard
Product Specification
  • Number of Levels : 1
  • Positions Per Level : 2
  • Pitch : 0.150" (3.81mm)
  • Mating Orientation : 55° (125°) Angle with Board
  • Current : 10 A
  • Voltage : 300 V
  • Wire Gauge : 16-30 AWG
  • Mounting Type : Through Hole
  • Wire Termination : Screw - Rising Cage Clamp
  • Screw Thread : M2
  • Color : Green
  • Housing Material : Polyamide (PA), Nylon
