- Number of Levels : 2
- Positions Per Level : 3
- Pitch : 0.200" (5.08mm)
- Mating Orientation : Horizontal with Board
- Current : 10 A
- Voltage : 300 V
- Wire Gauge : 14-30 AWG
- Mounting Type : Through Hole
- Wire Termination : Screw - Rising Cage Clamp
- Features : Interlocking (Side)
- Color : Green
- Housing Material : Polyamide (PA), Nylon
5 Pc(s) In Stock
SKU
1726066

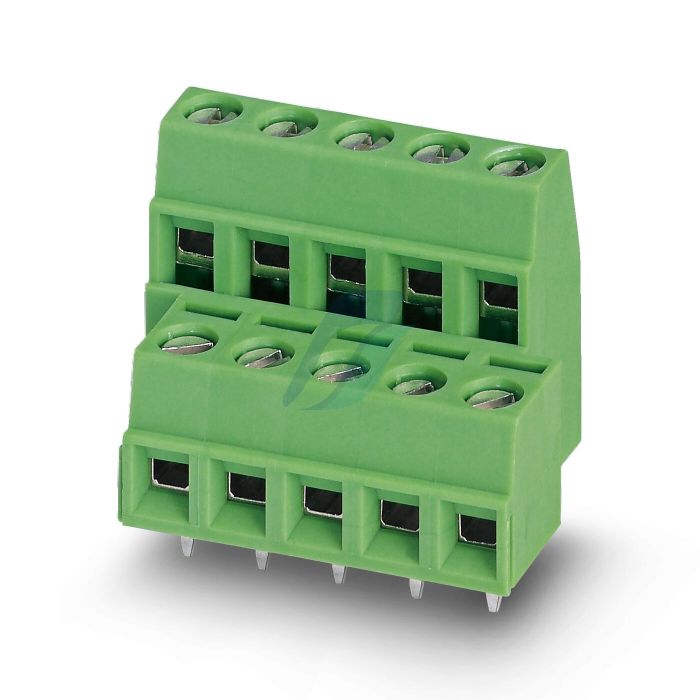

Phoenix Contact PCB terminal block - MKKDSN 1,5/ 3-5,08
₹150.17
For 1 Pc(s)
- 1726066
- 85369010
- Pc(s)
- Phoenix Contact
- 6.58
- No
- GST 18%
- Germany
Product Details
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm2, number of potentials: 6, number of rows: 2, number of positions per row: 3, product range: MKKDSN 1,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
