- Number of Positions : 1
- Number of connections : 1
- Number of rows : 1
- Maximum load current : 32 A
- Product Category : Fixed Terminal Blocks
- Flammability Rating : UL 94 V-0
- Height : 28.5 mm
- Length : 27 mm
48 Pc(s) In Stock
SKU
1704004

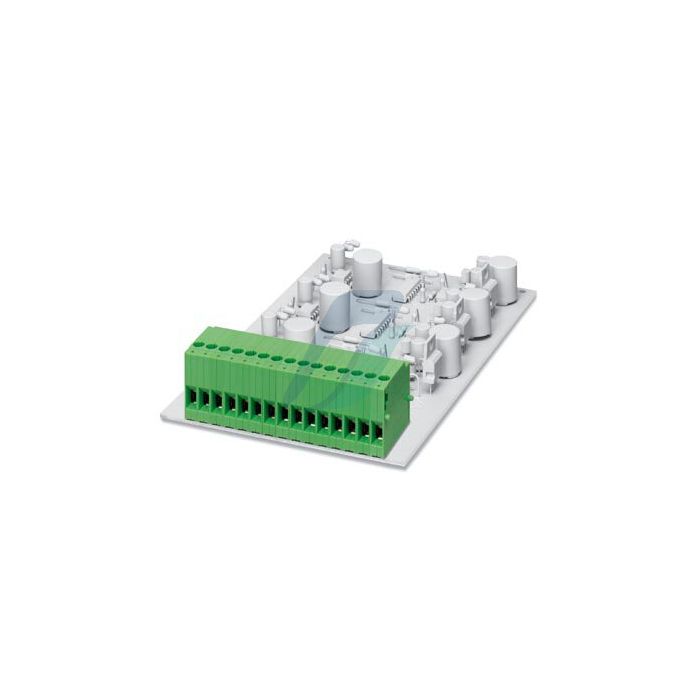

Phoenix Contact PCB terminal block - KDS 3
₹85.50
- 1704004
- 85369010
- Pc(s)
- Phoenix Contact
- 4.4
- No
- GST 18%
- Poland
Product Specification
Product Details
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm2, number of potentials: 1, Number of rows: 1, Number of positions per row: 1, product range: KDS 3, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
