Phoenix Contact Connector - SACC-M12MS-5CON-PG 7-M

₹719.00 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 1663116
HSN Code 85366990
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 23.62
ROHS Compliance No
Tax GST 18%
Country of Origin Germany

Product Details

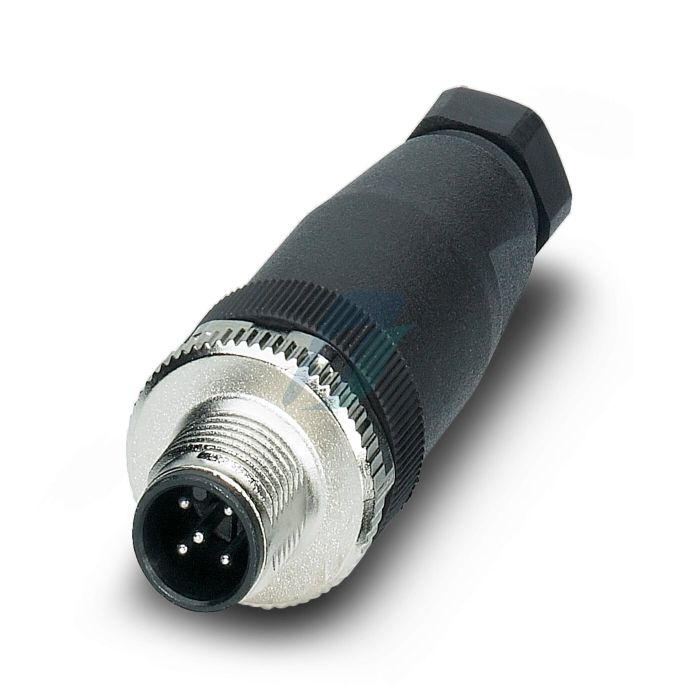

Connector, Universal, 5-position, Plug straight M12, Coding: A, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg7, external cable diameter 4 mm ... 6 mm

Product Specification

Connector Type : Plug, Male Pins
Number of Positions : 5
Shell Size – Insert : M12-5
Mounting Type : Free Hanging (In-Line)
Termination : Screw
Fastening Type : Threaded
Orientation : A
Primary Material : Metal
Voltage Rating : 48VAC, 60VDC
Operating Temperature : -40°C ~ 85°C
Contact Material : Copper Zinc
