Phoenix Contact Installation ground terminal block - UISLKG 16

₹180.00 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 0443052
HSN Code 85369010
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 35.606
ROHS Compliance No
Tax GST 18%
Country of Origin India

Product Details

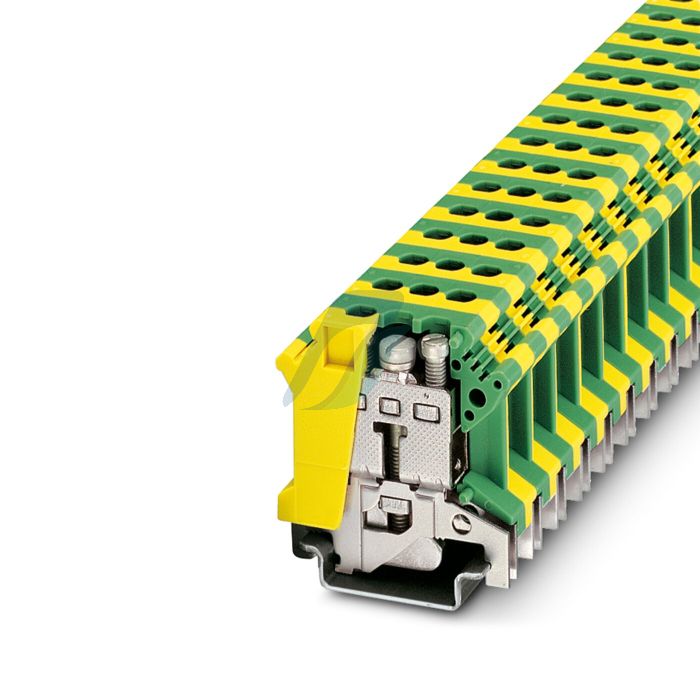

Installation ground terminal block, number of connections: 2, connection method: Screw connection, Rated cross section: 16 mm2, cross section: 2.5 mm2 - 25 mm2, mounting: PE foot with mounting screw, M4, mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow

Product Specification

Number of Positions : 2
Number of Levels :1
Terminal – Width : 12.0mm
Termination Style : Screw
Current – IEC : 76 A
Wire Gauge or Range – AWG : 4-22 AWG
Wire Gauge or Range – mm² : 2.5-25mm²
Color : Green, Yellow
Material – Insulation : Polyamide (PA), Nylon
Stripping Length : 11mm
