- Number of Positions : 2
- Number of Levels : 1
- Terminal – Width : 6.2mm
- Termination Style : Screw
- Wire Gauge or Range – AWG : 10-26 AWG
- Wire Gauge or Range – mm² : 0.2-6mm²
- Color : Green, Yellow
- Material – Insulation : Polyamide (PA), Nylon
- Material Flammability Rating : UL94 V-0
- Stripping Length : 8mm
10 Pc(s) In Stock
SKU
0441504

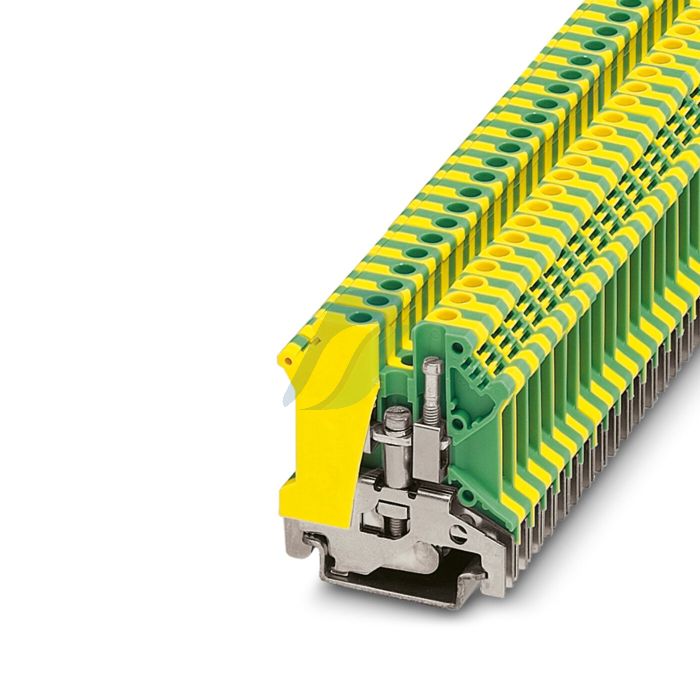

Phoenix Contact Ground modular terminal block - USLKG 5
₹66.50
For 1 Pc(s)
- 0441504
- 85369010
- Pc(s)
- Phoenix Contact
- 20
- No
- GST 18%
- India
Product Details
Ground modular terminal block, When aligning with a feed-through terminal block with the same shape, an end cover must be interposed with insulation voltages of > 690 V, number of connections: 2, connection method: Screw connection, cross section: 0.2 mm2 - 6 mm2, mounting: PE foot with mounting screw, M3, mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow
Product Specification
