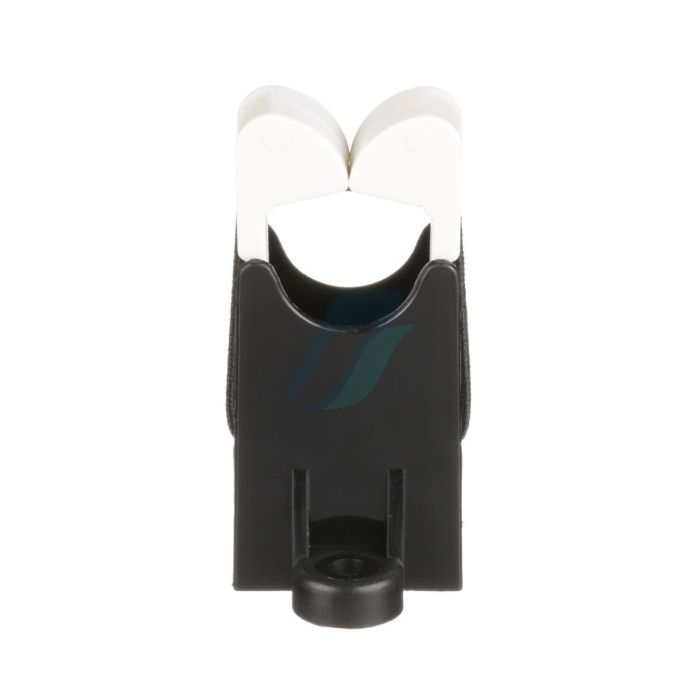

Panduit RER.125-S6-X Harness Elastic Retainer, .50" Pack of 10

Special Price ₹3,375.00 For 1 Pack Regular Price ₹4,821.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU RER.125-S6-X
HSN Code 39269097
UOM Pack
ROHS Compliance No
Tax GST 18%
Country of Origin Costa Rica

Product Details

Panduit RER.5-S6-X Harness Elastic Retainers with replaceable elastic band are part of the Quick-Build™ modular and reusable harness board system. Cable bundles are formed as individual wire are inserted into retainers and once bundles are formed, they can be easily removed. Suitable for 0.5” maximum bundle capacity and come in packages of 10.

Product Specification

Product Type: Harness Board Accessory
Environment: Indoor
For Use With: QB Components - QB-BASE175-Q, QB-S6-500-C and QB-RERBASE-X
Material: Nylon 6.6
Maximum Bundle Diameter (in): 0.5
Mount Method: Two #6 (M3) Screws
Overall Height (In.): 1.89
Overall Length (In.): 0.84
Overall Width (In.): 1.18
Screw Size: #6 (M3)
Application:Suitable for 0.5" Maximum Bundle Capacity
Part Features:Cable bundles are formed as individual wires are inserted, Complete bundles can be easily removed, The elastic band is replaceable

Datasheet

Panduit-RER.125-S6-X.pdf
