Panduit LCMA70-10-L Pan-Lug 10-L Tin-Plated CopperCompression Connectors - Metric Lugs

Special Price ₹220.00 For 1 Pc(s) Regular Price ₹312.00

Product Details

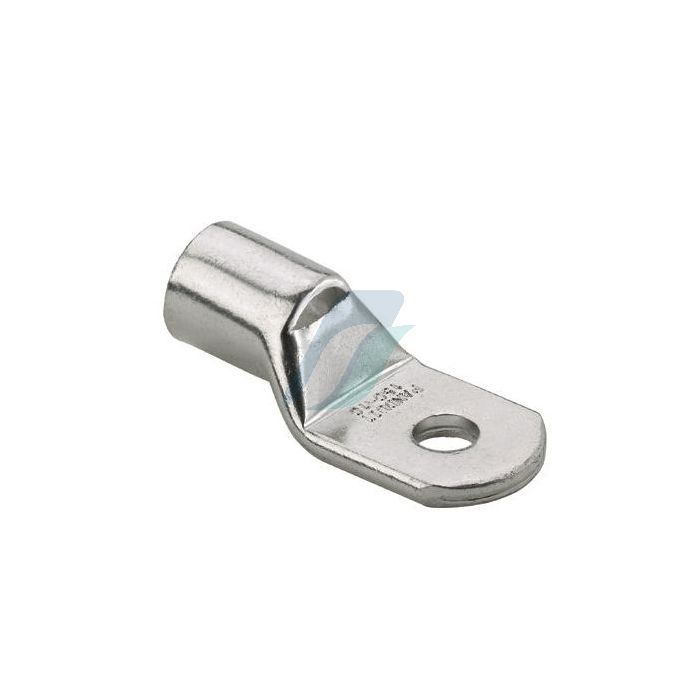

One-hole, metric conductor, standard barrel with window lug, 70mm² wire, M10 stud hole.

Product Specification

Product Type: Tin-Plated CopperCompression Connectors - Metric Lugs
Tongue Type: Standard
Tongue Thickness (mm):2.9
Overall Length (mm):53.5
Barrel Type : Standard Barrel Length with Inspection Window
Barrel Length (mm): 23.3
Standards Met: Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire
Sub Brand: Pan-Lug
Wire Strip Length (mm):24.8
Part Features:Tin plated to inhibit corrosion,color coded barrel,inspection window.

Datasheet
