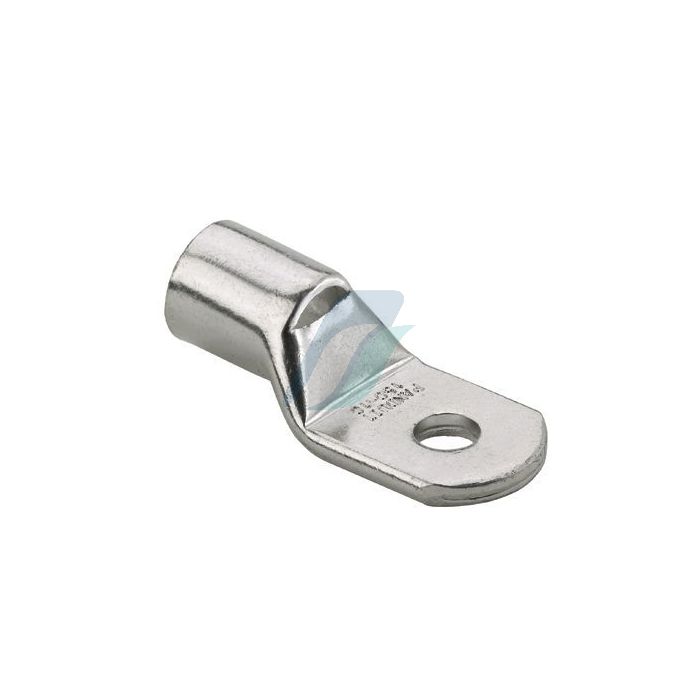

Panduit LCMA25-10-C Pan-Lug™ Tin-Plated CopperCompression Connectors - Metric Lugs

Special Price ₹71.26 For 1 Pc(s) Regular Price ₹101.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU LCMA25-10-C
HSN Code 85369010
UOM Pc(s)
ROHS Compliance No
Tax GST 18%
Country of Origin United States

Product Details

The LCMA25-10-C Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.

Product Specification

Inside Diameter (In.): 0.27
Outer Diameter (In.): 0.34
Lug Type: Standard
Base Material: Copper
Metric Class 2r Conductor Size for Copper Lugs, Splices(mm²): 25
Metric Class 5f-6f Wire Size for Copper Lugs, Splices(mm²): 16
Stud Hole Size (In.): 0.43
Stud Hole Size (mm): 11
Barrel Length (In.): 0.59
Tongue Type: Standard
Tongue Width (In.): 0.61
Tongue Angle: Straight
Tongue Thickness (In.): 0.06
Overall Length (In.): 1.45
Finish/Coating:Tin-Plated
Standards Met: Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire
