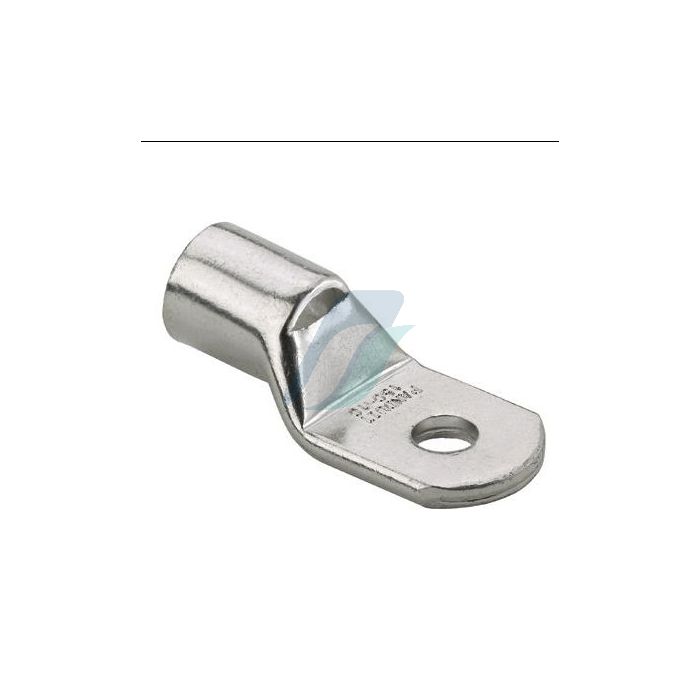

Panduit LCMA185-10-X Pan-Lug 10-X Tin-Plated CopperCompression Connectors - Metric Lugs

Special Price ₹401.30 For 1 Pack Regular Price ₹573.20

Product Details

One-hole, metric conductor, standard barrel with window lug, 185mm² wire, M10 stud hole

Product Specification

Product Type: Tin-Plated CopperCompression Connectors - Metric Lugs
Tongue Type: Standard
Tongue Thickness (mm):4.6
Overall Length (mm):72.5
Barrel Type : Standard Barrel Length with Inspection Window
Barrel Length (mm): 28.2
Standards Met: Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire
Sub Brand: Pan-Lug
Wire Strip Length (mm):29.7
Part Features:Tin plated to inhibit corrosion,color coded barrel,inspection window.

Datasheet
