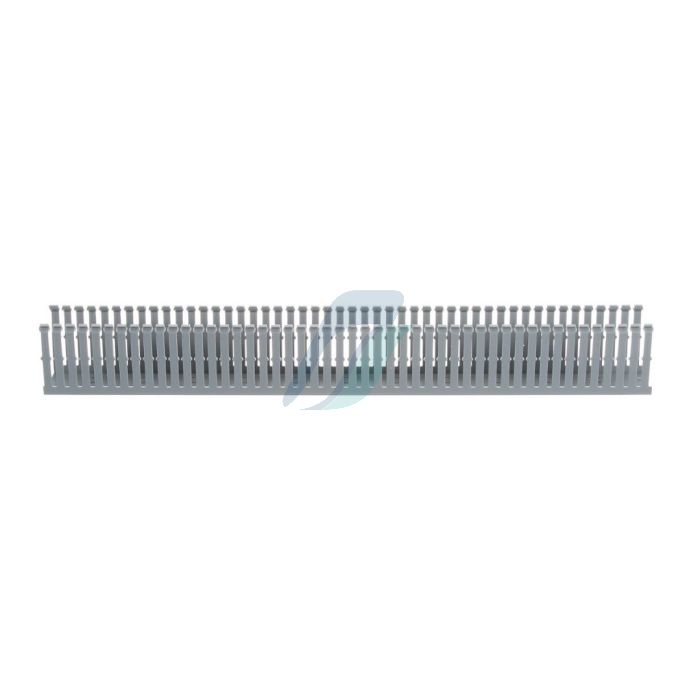

Panduit F2X3LG6 Narrow Slot Wiring Duct, No cover length of 6 Feet

Special Price ₹1,806.00 Regular Price ₹2,580.00

Product Overview

SKU F2X3LG6
HSN Code 85359000
UOM Pack
Net weight in grams 1.074
ROHS Compliance No
Tax GST 18%

Product Specification

Product Type: Base Wiring Duct
Color: Light Gray
Flammability Rating: UL94V-0
Standards Met: UL Recognized, CE Compliant; CSA Approved
Material: Lead-Free PVC
Mount Method: Mounting Holes
Measurement System: Imperial
Wiring Duct Style: Narrow Slot Wiring Duct
Wiring Duct Type: F
Overall Height (In.): 3.14
Overall Height (mm): 79.8
Overall Length (ft.): 6
Overall Width (In.): 2.25
Slot Width (In.) : 0.2

Product Details

The F2X3LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 3.14" x 2.25" (79.8 mm x 57.2 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray. 6 per package

Datasheet

Panduit-F2X3LG6.PDF
