- Circuits : 10
- Color - Resin : Beige
- Flammability : 94V-0
- No. Of Row : 2
- Material - Plating Mating : Tin
- Orientation : Right Angle
- Material - Resin : Nylon
- Material - Metal : Brass
- Pitch - Mating Interface : 4.20mm
- PC Tail Length : 3.30mm
- Termination Interface: Style : Through Hole
- Current - Maximum per Contact : 13.0A
- Voltage - Maximum : 600V
- CSA : LR19980
- UL : E29179
1488 Pc(s) In Stock
SKU
874271002

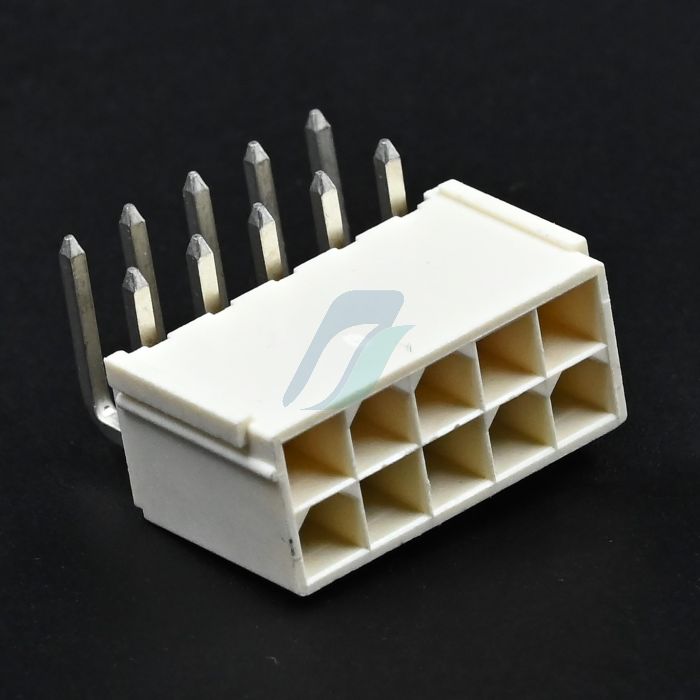

Molex 087427-1002 [RT/A] Mini-Fit Family Power Connectors
₹40.00
For 1 Pc(s)
- 874271002
- 85369090
- Pc(s)
- Molex
- 4.400
- No
- GST 18%
- India
Product Details
Mini-Fit Jr. Header, 4.20mm Pitch, Right-Angle, without Flange, 10 Circuits, Tin (Sn) over Nickel (Ni) Plating
Product Specification
