1805 Pc(s) In Stock

SKU

39291248

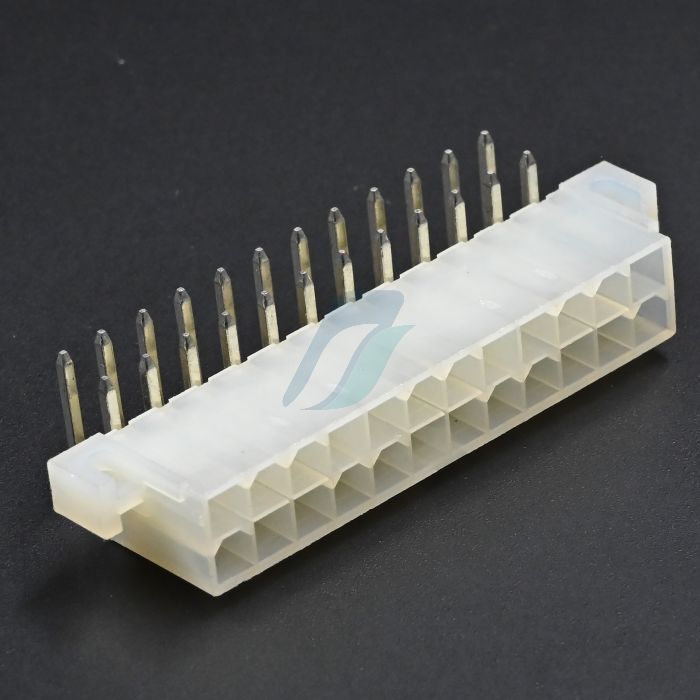

Molex 5569-24 Mini-Fit Jr. Power Connectors

₹150.00 For 1 Pc(s)

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Product Overview

SKU 39291248
HSN Code 85369090
UOM Pc(s)
Manufacturer Molex
Net weight in grams 8.587
ROHS Compliance No
Tax GST 18%
Country of Origin India

Product Details

Mini-Fit Jr. Header, Dual Row, Right-Angle, with PCB Mounting Flange, 24 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating

Product Specification

Circuits : 24
Color - Resin : Natural
Flammability : 94V-2
No. Of Row : 2
Material - Plating Mating : Matte Tin
Orientation : Right Angle
Material - Resin : Nylon
Material - Metal : Brass
Pitch - Mating Interface : 4.20mm
Plating min - Mating : 2.540µm
Termination Interface: Style : Through Hole
Current - Maximum per Contact : 13.0A
Voltage - Maximum : 600V
CSA : LR19980
UL : E29179
