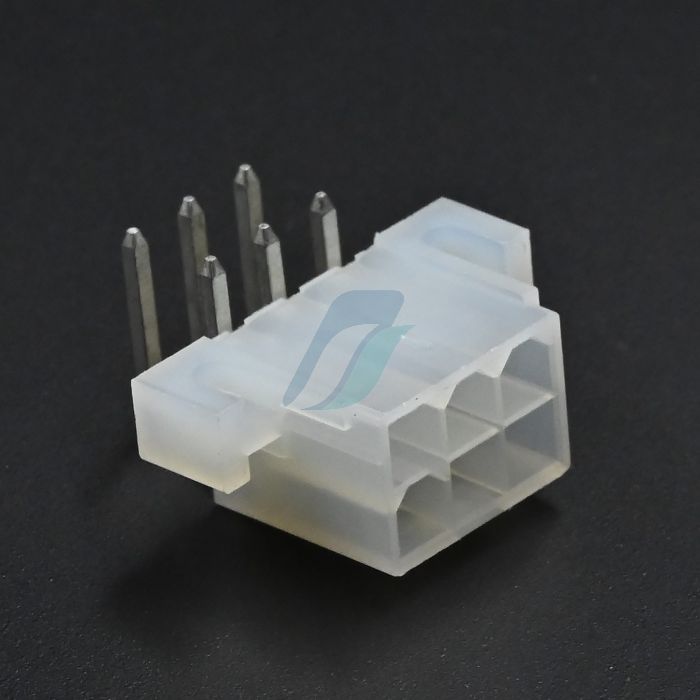

main product photo

Skip to the beginning of the images gallery

683 Pc(s) In Stock

SKU

39291068

Molex 5569-6 Mini-Fit Jr. Power Connectors

₹13.20

Product Overview

SKU 39291068
HSN Code 85369090
UOM Pc(s)
Manufacturer Molex
Net weight in grams 2.466
ROHS Compliance No
Tax GST 18%
Country of Origin India

Product Specification

Circuits : 6
Color - Resin : Natural
Flammability : 94V-2
No. Of Row : 2
Material - Plating Mating : Matte Tin
Orientation : Right Angle
Material - Resin : Nylon
Material - Metal : Brass
Pitch - Mating Interface : 4.20mm
Plating min - Mating : 2.540µm
Termination Interface: Style : Through Hole
Current - Maximum per Contact : 13.0A
Voltage - Maximum : 600V
CSA : LR19980
UL : E29179

Product Details

Mini-Fit Jr. Header, Dual Row, Right-Angle, with PCB Mounting Flange, 6 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating
