- Circuits : 2
- Color - Resin : Natural
- Flammability : 94V-2
- No. Of Row : 2
- Material - Plating Mating : Matte Tin
- Orientation : Right Angle
- Material - Resin : Nylon
- Material - Metal : Brass
- Pitch - Mating Interface : 4.20mm
- Plating min - Mating : 2.540µm
- Termination Interface: Style : Through Hole
- Current - Maximum per Contact : 13.0A
- Voltage - Maximum : 600V
- CSA : LR19980
- UL : E29179
14178 Pc(s) In Stock
SKU
39291028

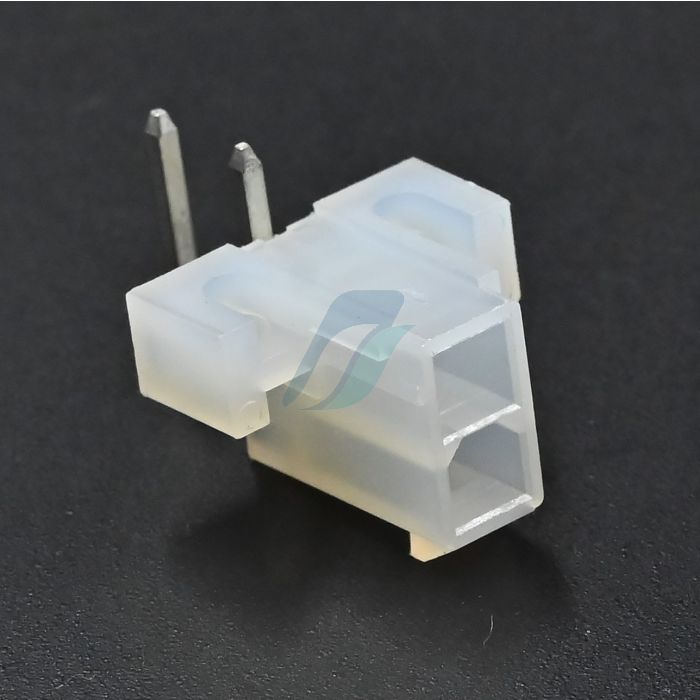

Molex 5569-2 Mini-Fit Jr. Power Connectors
₹7.50
- 39291028
- 85369090
- Pc(s)
- Molex
- 1.105
- No
- GST 18%
- India
Product Specification
Product Details
Mini-Fit Jr. Header, Dual Row, Right-Angle, with PCB Mounting Flange, 2 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating
