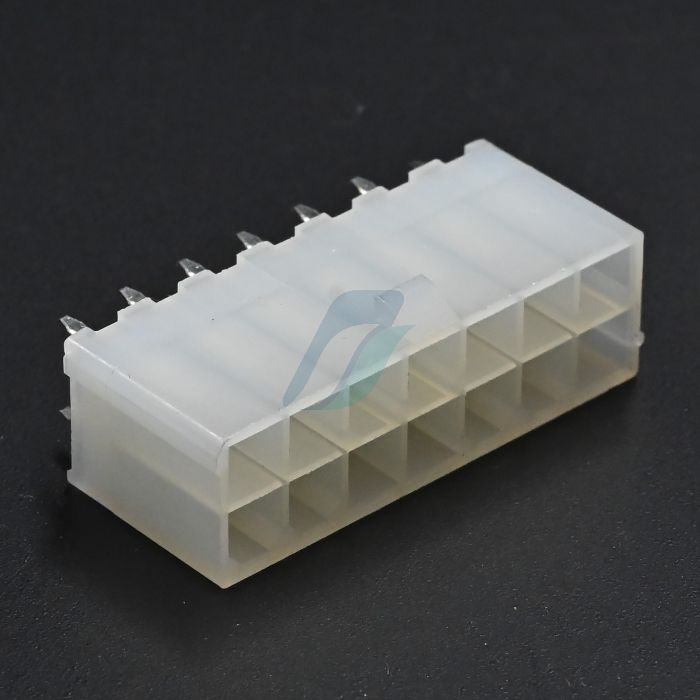

main product photo

Skip to the beginning of the images gallery

2570 Pc(s) In Stock

SKU

39281143

Molex 5566-14 Mini-Fit Jr. Power Connectors

₹34.90

Product Overview

SKU 39281143
HSN Code 85369090
UOM Pc(s)
Manufacturer Molex
Contacts 14
Mounting Method PCB Straight
Gender Male
Net weight in grams 3.727
ROHS Compliance Yes
Tax GST 18%
Country of Origin India

Product Specification

Circuits : 14
Color - Resin : Natural
Flammability : 94V-2
No. Of Row : 2
Material - Plating Mating : Tin
Orientation : Vertical
Material - Resin : Nylon
Material - Metal : Brass
Pitch - Mating Interface : 4.20mm
Plating min - Mating : 0.889µm
Termination Interface: Style : Through Hole
Current - Maximum per Contact : 9.0A
Voltage - Maximum : 600V
CSA : LR19980
UL : E29179

Product Details

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 14 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
