- Circuits : 2
- Color - Resin : Natural
- Flammability : 94V-2
- No. Of Row : 2
- Material - Plating Mating : Tin
- Orientation : Vertical
- Material - Resin : Nylon
- Material - Metal : Brass
- Pitch - Mating Interface : 4.20mm
- Plating min - Mating : 0.889µm
- Termination Interface: Style : Through Hole
- Current - Maximum per Contact : 9.0A
- Voltage - Maximum : 600V
- CSA : LR19980
- UL : E29179
11675 Pc(s) In Stock
SKU
39281023
Molex 5566-2 Mini-Fit Family Power Connectors
₹12.25
For 1 Pc(s)
- 39281023
- 85369090
- Pc(s)
- Molex
- 0.705
- No
- GST 18%
- India
Product Details

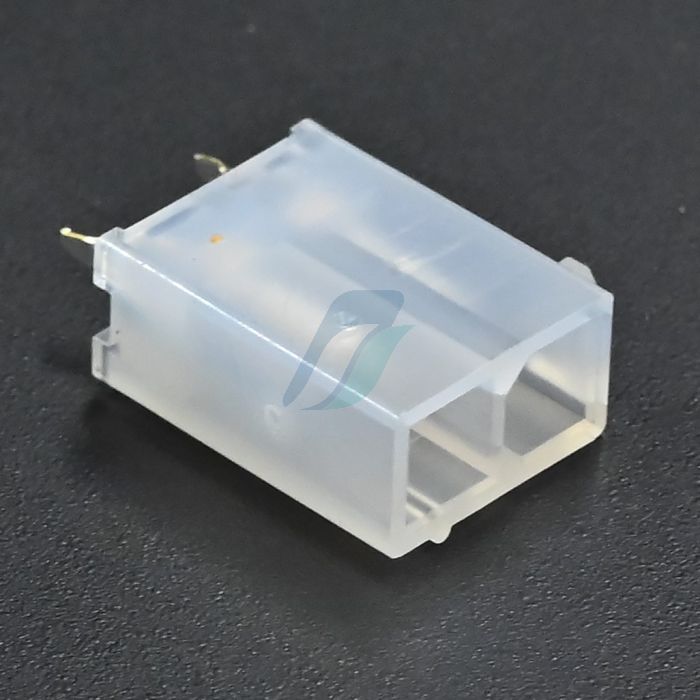

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
Product Specification
