- Circuits : 10
- Color - Resin : Natural
- Flammability : 94V-2
- No. Of Row : 2
- Stackable : No
- Temperature Range – Operating : -40° to +105°C
- Material - Resin : Nylon
- Gender : Plug
- Pitch - Mating Interface : 4.20mm
- Pitch - Termination Interface : 4.20mm
- Glow-Wire Capable : NO
- Current - Maximum per Contact : 13.0A
- CSA : LR19980
- UL : E29179
17294 Pc(s) In Stock
SKU
39012101

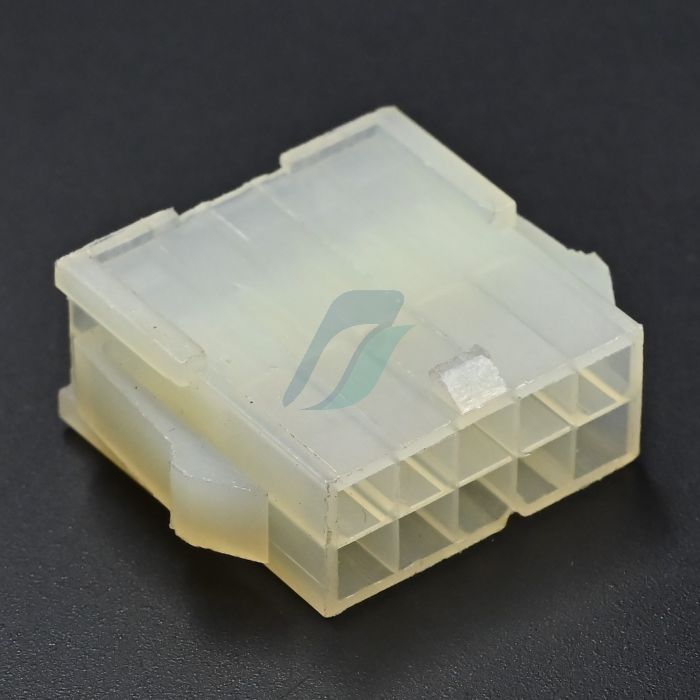

Molex 5559-10 Mini-Fit Family Power Connectors
₹6.50
For 1 Pc(s)
- 39012101
- 85389090
- Pc(s)
- Molex
- 3.263
- No
- GST 18%
- India
Product Details
Mini-Fit Jr. Plug Housing, Dual Row, 10 Circuits, UL 94V-2, with Panel Mounting Ears, Natural
Product Specification
