20000 Pc(s) In Stock
SKU
39012081

Molex 5559-8 Mini-Fit Family Power Connectors

₹6.80 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • 39012081
  • 85389090
  • Pc(s)
  • Molex
  • 2.757
  • No
  • GST 18%
  • India
Product Details

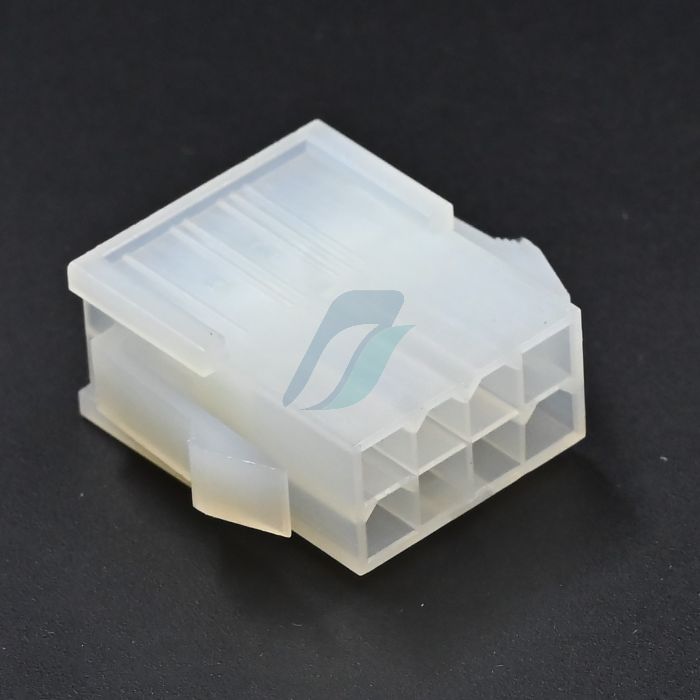

Mini-Fit Jr. Plug Housing, Dual Row, 8 Circuits, UL 94V-2, with Panel Mounting Ears, Natural
Product Specification
  • Circuits : 8
  • Color - Resin : Natural
  • Flammability : 94V-2
  • No. Of Row : 2
  • Stackable : No
  • Temperature Range – Operating : -40° to +105°C
  • Material - Resin : Nylon
  • Gender : Plug
  • Pitch - Mating Interface : 4.20mm
  • Pitch - Termination Interface : 4.20mm
  • Glow-Wire Capable : NO
  • Current - Maximum per Contact : 13.0A
  • CSA : LR19980
  • UL : E29179
