- Gender : Female
- Material – Metal : Brass
- Material - Plating Mating : Tin
- Material - Plating Termination : Tin
- Packaging Type : Reel
- Plating min – Mating : 0.889µm
- Plating min – Termination : 0.889µm
- Termination Interface: Style : Crimp or Compression
- Wire Insulation Diameter : 1.30-3.10mm
- Wire Size AWG : 18, 20, 22, 22+22, 24
- Durability (mating cycles max) : 30
50000 Pc(s) In Stock
SKU
39000038

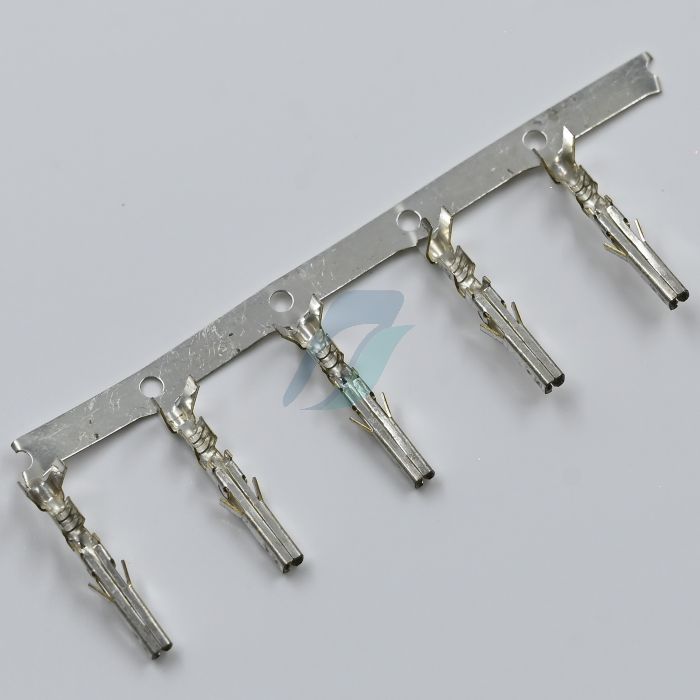

Molex 5556-T PINS [ROLL] FML Mini-Fit Family Power Connectors
₹0.65
For 1 Pc(s)
- 39000038
- 85369090
- Pc(s)
- Molex
- 0.182
- No
- GST 18%
- India
Product Details
Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 18-24, 22+22 AWG, Reel
Product Specification
