5360 Pc(s) In Stock

SKU

22057105

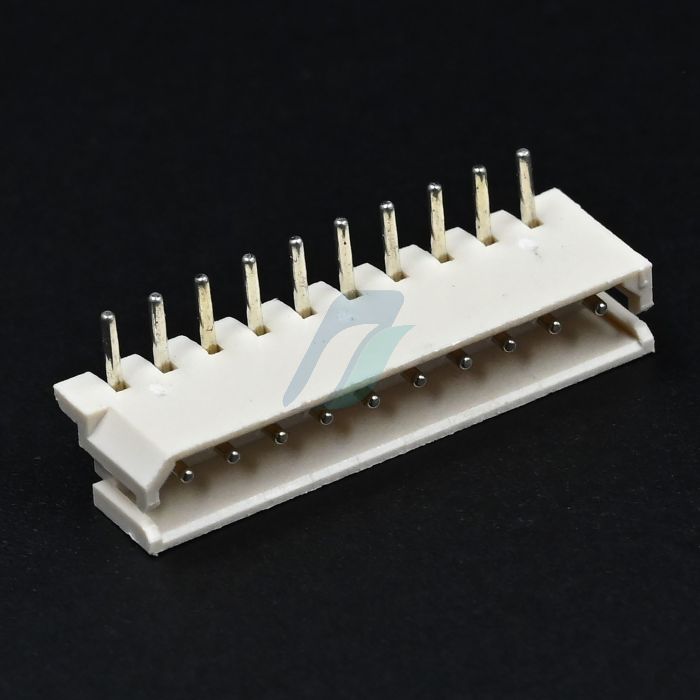

Molex 5268-10 Mini-SPOX Wire-to-Board Connector System

₹15.80

Product Overview

SKU 22057105
HSN Code 85369090
UOM Pc(s)
Manufacturer Molex
Net weight in grams 989.800/mg
ROHS Compliance No
Tax GST 18%
Country of Origin India

Product Specification

Circuits : 10
Color - Resin : Natural
Flammability : 94V-0
No. Of Row : 1
Material - Plating Mating : Tin
Orientation : Right Angle
Material - Resin : Nylon
PC Tail Length : 3.50mm
Pitch - Mating Interface : 2.50mm
Plating min - Mating : 4.064µm
Termination Interface: Style : Through Hole
Current - Maximum per Contact : 3.0A
Voltage - Maximum : 250V
CSA : LR19980
UL : E29179

Product Details

2.50mm Pitch, Mini-SPOX PCB Header, Single Row, Through Hole, Tin Plating, Friction Lock, 10 Circuits, Bag, 3.50mm PC Tail Length
