- Circuits : 10
- Orientation : Right Angle
- Current - Maximum per Contact : 4.0A
- Voltage : 500V
- Color – Resin : Natural (White)
- Durability (mating cycles max) : 25
- Flammability : 94V-0
- Material - Metal : Brass
- Material - Plating Mating : Tin
- Material – Resin : Nylon
- PC Tail Length : 3.58mm
- Pitch - Mating Interface : 2.54MM
- Pitch – Termination Interface : 2.54MM
- Termination Interface: Style : Through Hole
- CSA : LR19980
739 Pc(s) In Stock
SKU
22053101
Molex 7478 - 10 KK Interconnect Solutions
₹15.70
For 1 Pc(s)
- 22053101
- 85369090
- Pc(s)
- Molex
- 1.331
- No
- GST 18%
- Singapore
Product Details

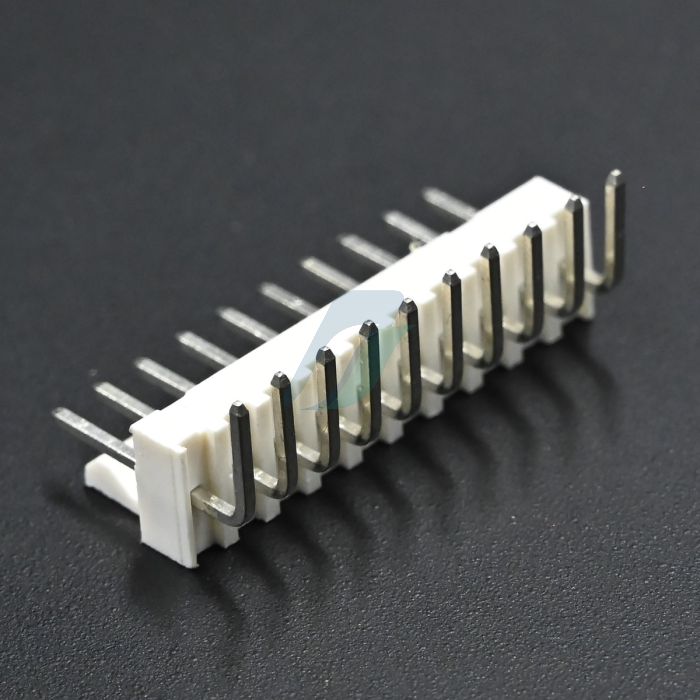

KK 254 Solid Header, Right-Angle, with Friction Lock, 10 Circuits, Tin (Sn) Plating
Product Specification
