SKU
10844060

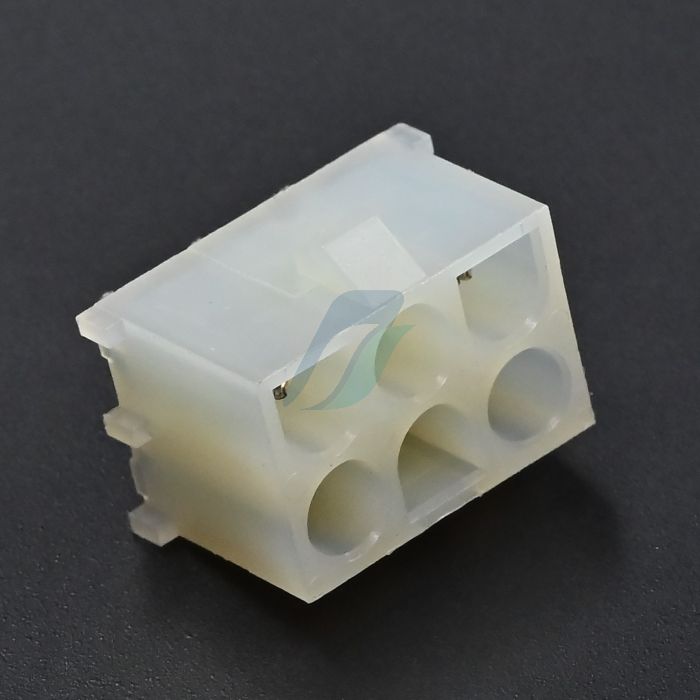

Molex A-42002-6A1A1 Male MLX Power Connectors

₹47.90
Notify Me
  • 10844060
  • 85369090
  • Pc(s)
  • Molex
  • 3.398
  • No
  • GST 18%
  • India
Product Specification
  • Circuits : 6
  • Color - Resin : Natural
  • Flammability : 94V-2
  • No. Of Row : 3
  • PC Tail Length : 4.27mm
  • Orientation : Vertical
  • Material - Resin : Nylon
  • Material - Metal : Phosphor Bronze
  • Pitch - Mating Interface : 6.35mm
  • PC Tail Length : 3.30mm
  • Termination Interface: Style : Through Hole
  • Current - Maximum per Contact : 13.5A, 20.0A
  • Temperature Range – Operating : -55° to +105°C
  • CSA : LR19980
  • UL : E29179
Product Details
6.35mm Pitch MLX Power Connector Header, Vertical, 6 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating, White
