- Circuits : 2
- Color - Resin : Natural
- Flammability : 94V-2
- No. Of Row : 1
- PC Tail Length : 4.27mm
- Orientation : Vertical
- Material - Resin : Nylon
- Material - Metal : Phosphor Bronze
- Pitch - Mating Interface : 6.35mm
- PC Tail Length : 3.30mm
- Termination Interface: Style : Through Hole
- Current - Maximum per Contact : 13.5A, 20.0A
- Temperature Range – Operating : -55° to +105°C
- CSA : LR19980
- UL : E29179
9168 Pc(s) In Stock
SKU
10844020

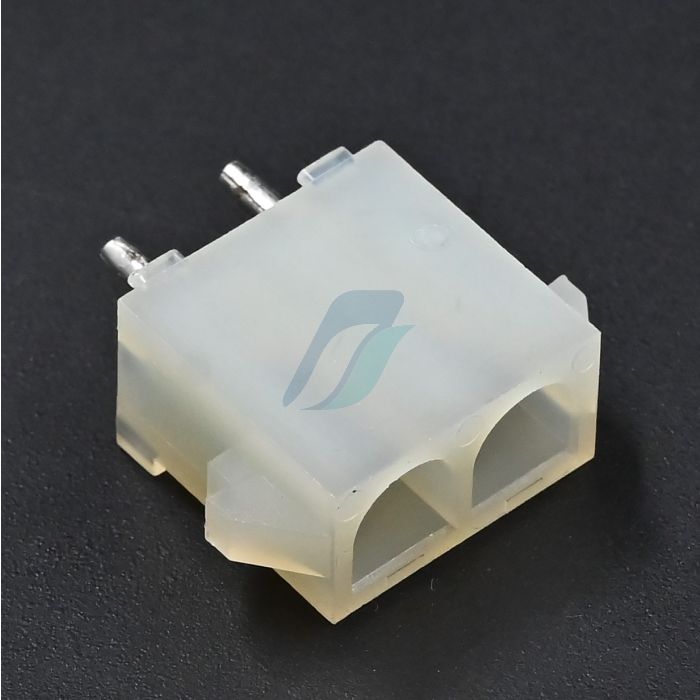

Molex A-42002-2A1A1 Male MLX Power Connectors
₹10.15
For 1 Pc(s)
- 10844020
- 85369090
- Pc(s)
- Molex
- 1.333
- No
- GST 18%
- India
Product Details
6.35mm Pitch MLX Power Connector Header, Vertical, 2 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating, White
Product Specification
